Центробежные воздушные компрессоры

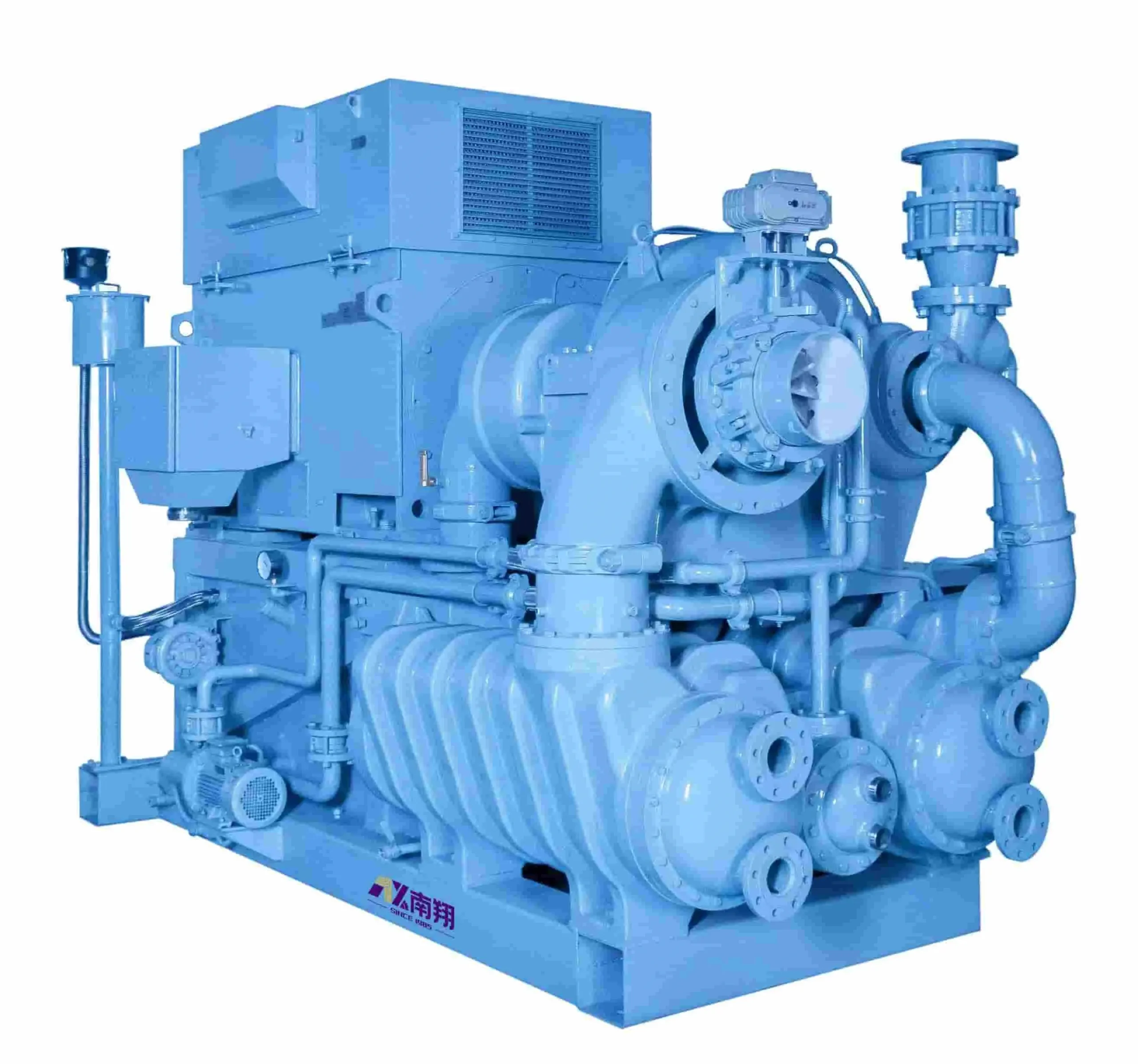

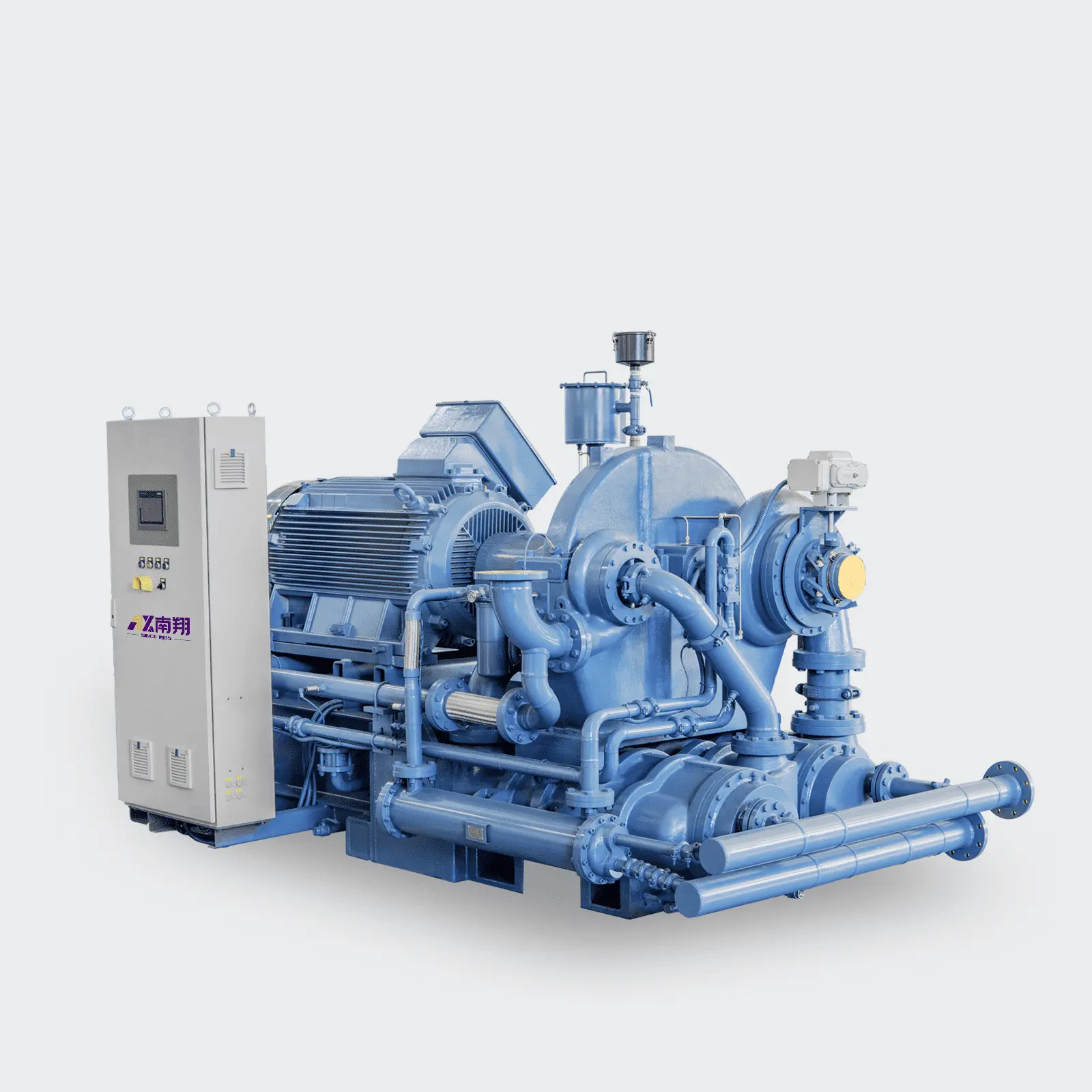

Центробежные воздушные компрессоры
Rated Pressure: 0.6-30 bar, 8.7-435 psi
Поток воздуха на выходе: 24-3000 m³/min, 848-105944 cfm
Мощность: 132-15130 kW, 177-20274 hp
Features of the Centrifugal Air Compressors
● High reliability, high safety
● Integrated package and economical installation
● Siemens PLC + touch screen, friendly interface and easy operation
● Easy maintenance and economical cost
● 1-4 stage option
● No instrument gas required
● No special base and anchor bolt required
● Oil-free，Silicon-free
● No sealing gas required
● Low noise and low vibration
● Anti surge protection
● High efficiency scroll: the gas will enter the scroll directly for revolute type, but one vertical retrace will occur for involute type. The efficiency is increased by 2%
| Модель | Pressure(bar) | Flow range(m³/min) | Motor Power(kW) | Dimensions(L)(mm) | Dimensions(M)(mm) | Dimensions(H)(mm) | Вес (кг) |
|---|---|---|---|---|---|---|---|
| NXLC-300C | 0.6-9 | 24-48 | 132-263 | 2750 | 1500 | 1820 | 3800 |
| NXLC-600C | 0.6-12 | 45-82 | 248-450 | 3280 | 1850 | 2200 | 6300 |
| NXLC-900C | 0.6-12 | 76-122 | 400-640 | 3800 | 2000 | 2250 | 8160 |
| NXLC-1200C | 0.6-12 | 118-150 | 630-800 | 4200 | 2150 | 2350 | 11500 |
| NXLC-1500C | 0.6-16 | 118-228 | 760-1300 | 4200 | 2150 | 2350 | 12000 |
| NXLC-2000C | 0.6-16 | 186-310 | 980-1600 | 4600 | 2200 | 2500 | 17200 |
| NXLC-3000C | 0.6-16 | 268-438 | 1380-2250 | 5300 | 2300 | 2970 | 21500 |
| NXLC-4000C | 0.6-25 | 347-550 | 1800-2850 | 6000 | 4500 | 3500 | 40000 |
| NXLC-6500C | 0.6-25 | 530-920 | 2660-4540 | 8500 | 4200 | 4200 | 45000 |
| NXLC-10000C | 0.6-30 | 830-1660 | 4060-7950 | 12000 | 5000 | 5300 | 65000 |
| NXLC-20000C | 0.6-30 | 1780-3000 | 8990-15130 | 15000 | 6200 | 6000 | 80000 |
Примечание:
Примечания к номеру модели: “F” означает фиксированную скорость, “V” — VSD. Из-за потенциально различной скорости вращения двигателей расход воздуха при фиксированной скорости представляет собой минимальное значение в диапазоне (т. е. 30 кВт, 8 бар, 5,67 м³/мин), в то время как VSD может достигать максимального значения при полной нагрузке.
Стандартное напряжение 380 В (+/-10%), 50 Гц +/-2%, а также доступно для индивидуального напряжения 220/380/440/460 В/60 Гц.
В случаях повышенной высоты над уровнем моря, экстремальных температур, чрезмерной влажности, сильного запыления или любых других сложных условий эксплуатации мы можем предложить индивидуальные конструкции продуктов, отвечающие вашим конкретным потребностям. Возможна индивидуальная настройка в соответствии с вашими уникальными требованиями.
Core Component Highlights of theCentrifugal Air Compressors

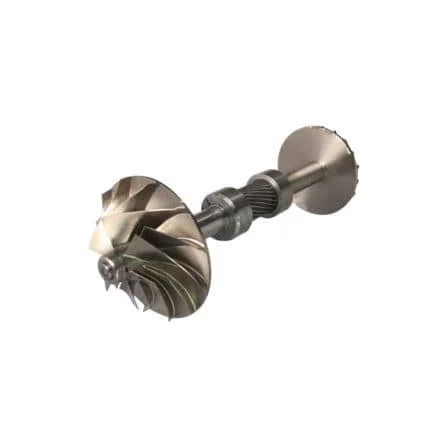

Rotor
The high-speed rotor is dynamically balanced, and designed to resist vibration without thrust bearings. There is no relative sliding in the rotor transmission, and the gear drive system is highly reliable, with a design life of 35 years.

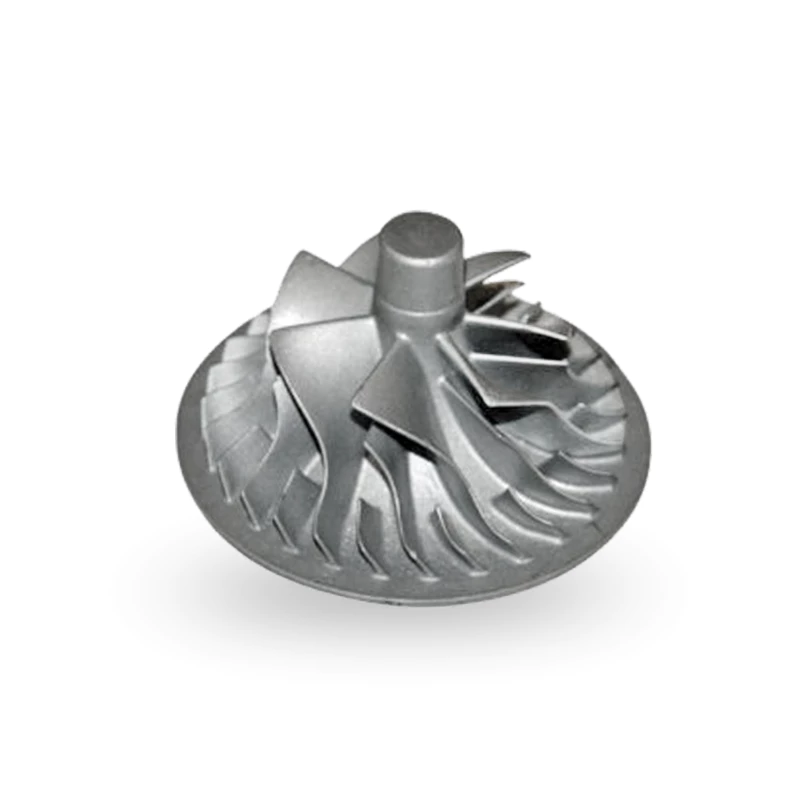

Impeller
● Aviation class high efficiency and high reliability titanium alloy impeller
● Anti-corrosion special coating impeller used for high corrosion industry
● Five-axis precision machining forging 3D flow back leaning design impeller, higher aerodynamic efficiency
● Splitter blade design for large flow
● Low flow loss and better adaptability for off-design conditions

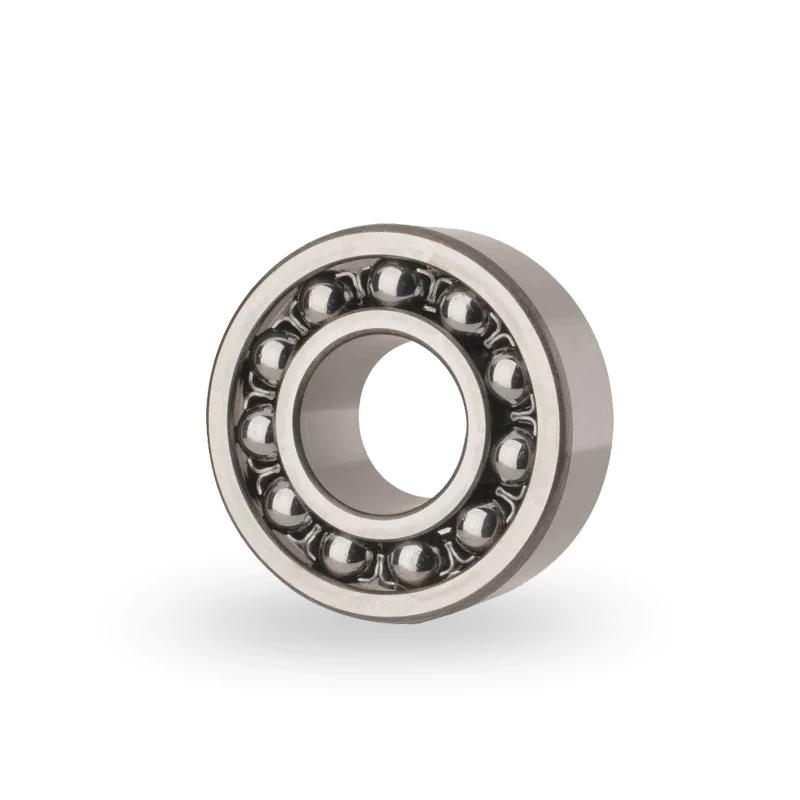

Bearings
● Tilting pad journal bearing realize high-speed and stable operation. Pad tilt will self-adjust when the bearing load changes.
● CC pad of high heat conductivity and high strength can decrease the bearing temperature and promote the stability of the rotor system.
Highly Reliable Cooler
● Straight tube design, no need to be pull out when maintaining, 90% maintenance time saved;
● No consumption parts and low maintenance fee;
● Larger design, high heat exchange efficiency, low water consumption and low pressure loss, about 1-2% energy saving;
● Gradual changing Cross design, perfect gas-liquid separation effect;
● Stainless steel backing board design, eliminating corrosion risk;
● No fastening parts, no risk of dameging the impellor by fallen parts;
● Supported by both side, eliminating the damage risk from resonance;
● Long life span drainer, no rusty, draining strongly and zero gas consumption.

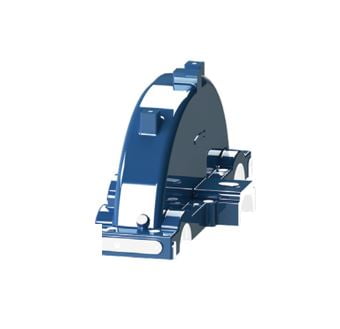

Коробка передач
Horizontal split type for easy maintenance of the bearings and shaft seals.
Thrust collar instead of thrust bearings. Which makes the structure simpler and increase the transmission efficiency and reliability.

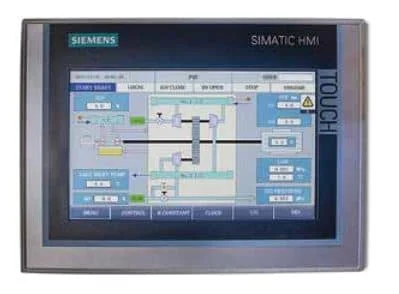

Local Control System
● The advanced Siemens PLC system +7” touch screen, friendly interface and easy opeartion;
● Options for auto dual, constant pressure control and self-balance control mode;
● All operating parameters can be displayed and setted；
● Features for various alarm and trip condition；
● Features anti-surge and surge prediction functions；
● Communication to DCS by DH+, Modbus, Profibus OR Ethernet.

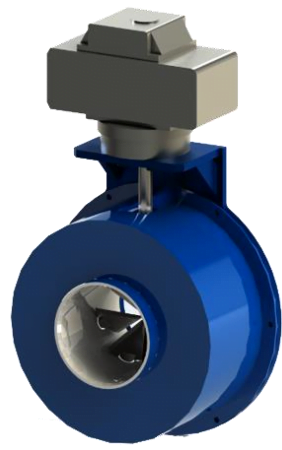

Inlet Guide Vane
The efficiency of compressor with IGV is 7-9% higher than that with butterfly valve, for IGV provides preswirl flow to the air taken into in the same direction as the impeller. Furthermore IGV can provide wider turn down rage and which is more smoothly during the adjusting period.
● Smoothly and high efficiency when adjusting;
● More safety and dust proof with cover;
● High reliability by fork type.

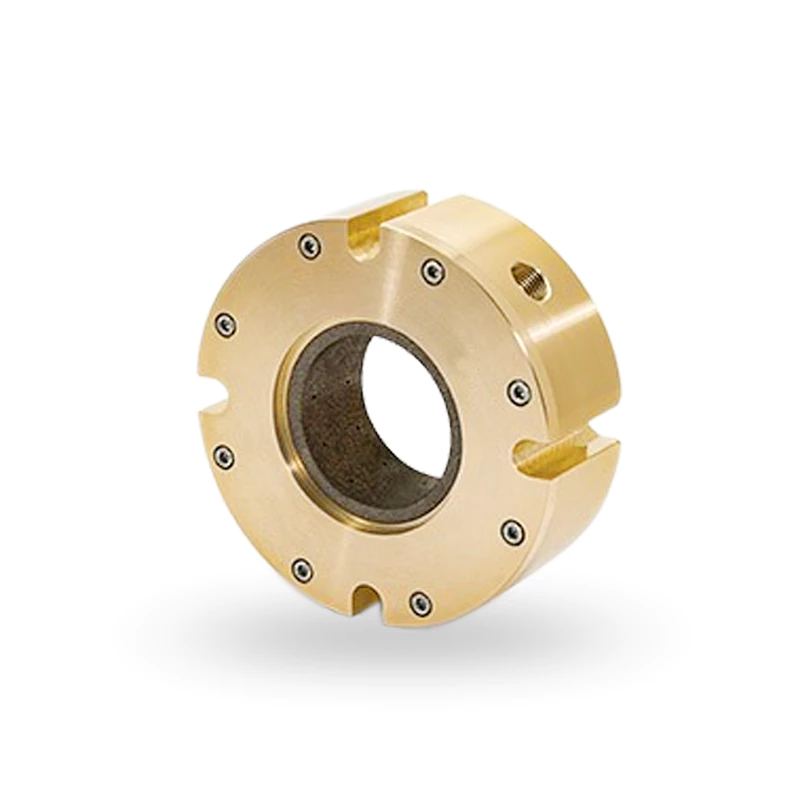

Air Seal
The gas & oil seal is labyrinth type, which has no contact to the shaft., no abrasion, long life, and low maintenance, no consumption of instrument air, and also, horizontal split makes easier maintenance.

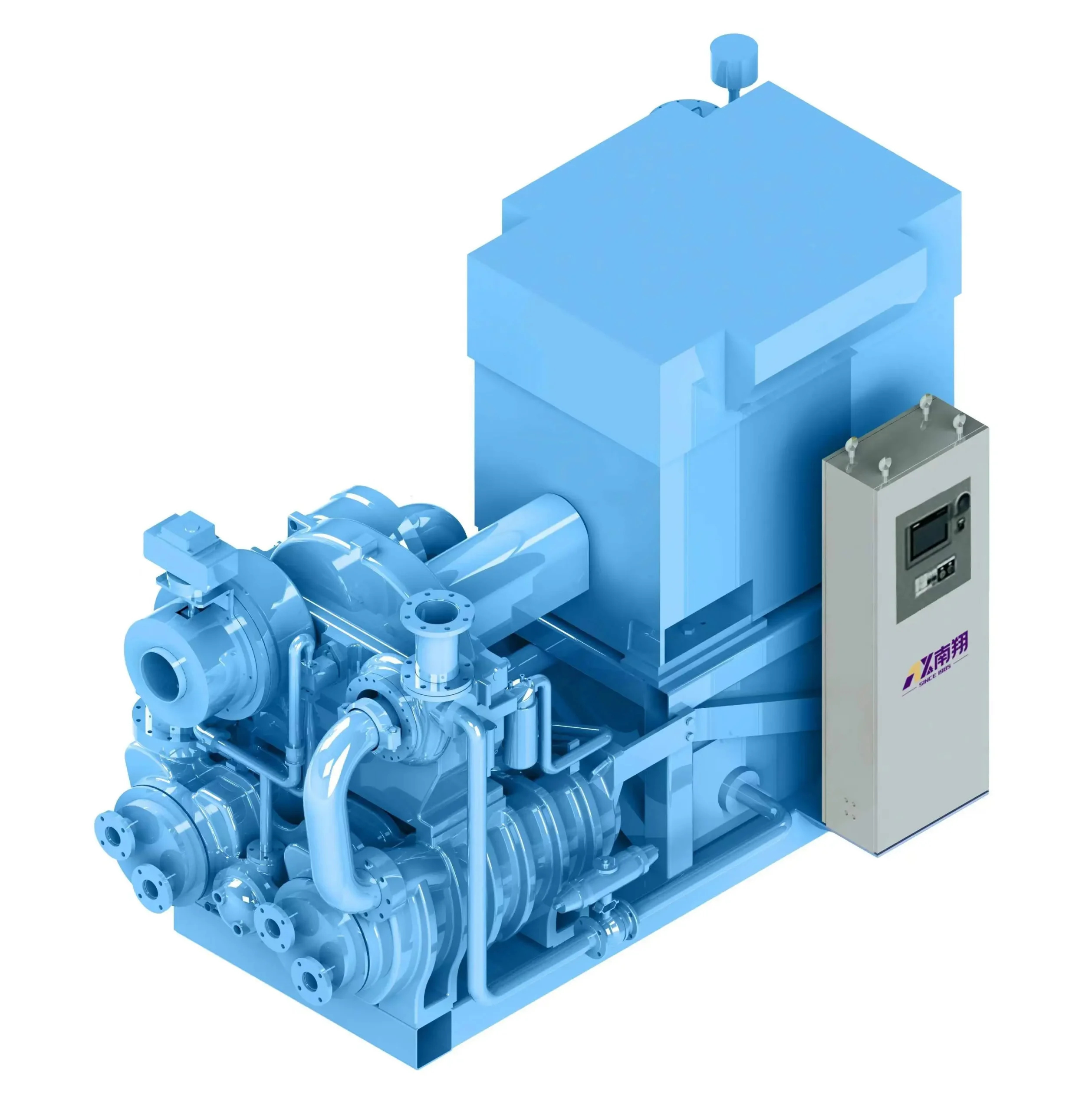

Схема установки (стандартная)
