Kompresor Udara Dua Tahap Bertekanan Rendah Seri S
Kompresor Udara Dua Tahap Bertekanan Rendah Seri S
- Rated Pressure:0.4-0.5 MPa, 4-5 Bar
- Air Flow @ Outlet:10.5-65 m³/min
- Working Power:37-250 kW, 50hp-335hp
Features of the S-Series Low Pressure Two-stage air Compressors
● The latest models boast features such as no gear faults, no coupling transmission faults, and no motor bearing issues, making them more efficient and easier to maintain.
● The dual permanent magnet motor allows for seamless speed changes, integrated shaft transmission, adjustable inter-stage pressure to maintain constant pressure, and efficient operation at all times for energy savings.
● The operating noise is low, and there is no gear meshing noise.
Core components highlight of the Low Pressure Two-stage Air Compressors
| Nomor Model / Jenis Drive | Daya (kW/HP) | Nilai Tekanan (bar) | Aliran Udara @ Outlet (m³/menit) | Dimensi (mm) | Berat (kg) | Diameter Pipa Saluran Keluar Udara |
|---|---|---|---|---|---|---|
| NXS-37V-4 | 37 / 50 | 4 | 10.5 | 2100*1360*1660 | 1900 | RC2 1/2 |
| NXS-37V-5 | 5 | 10 | ||||
| NXS-45V-4 | 45 / 60 | 4 | 13.2 | 2100*1360*1660 | 2100 | RC2 1/2 |
| NXS-45V-5 | 5 | 12 | ||||
| NXS-55V-4 | 55 / 75 | 4 | 16.5 | 2200*1600*1900 | 2200 | DN80 |
| NXS-55V-5 | 5 | 15 | ||||
| NXS-75V-4 | 75 / 100 | 4 | 20.5 | 2800*1750*1900 | 2800 | DN80 |
| NXS-75V-5 | 5 | 18.5 | ||||
| NXS-90V-4 | 90 / 120 | 4 | 25.5 | 2800*1750*1900 | 2800 | DN80 |
| NXS-90V-5 | 5 | 23 | ||||
| NXS-110V-4 | 110 / 150 | 4 | 30 | 3200*1950*2150 | 3200 | DN100 |
| NXS-110V-5 | 5 | 28 | ||||
| NXS-132V-4 | 132 / 175 | 4 | 36 | 3200*1950*2150 | 3500 | DN100 |
| NXS-132V-5 | 5 | 32.5 | ||||
| NXS-160V-4 | 160 / 215 | 4 | 43.5 | 3800*2150*2250 | 4100 | DN125 |
| NXS-160V-5 | 5 | 41 | ||||
| NXS-185V-4 | 185 / 250 | 4 | 49 | 3800*2150*2250 | 4500 | DN125 |
| NXS-185V-5 | 5 | 45 | ||||
| NXS-200V-4 | 200 / 270 | 4 | 55 | 3200*1750*2350 | 5100 | DN150 |
| NXS-200V-5 | 5 | 50 | ||||
| NXS-220V-4 | 220 / 300 | 4 | 60 | 4350*2250*2350 | 6200 | DN150 |
| NXS-220V-5 | 5 | 54 | ||||
| NXS-250V-4 | 250 / 335 | 4 | 65 | 4350*2250*2350 | 6600 | DN150 |
| NXS-250V-5 | 5 | 61 |
Catatan:
Catatan nomor model: “F” sebagai kecepatan tetap, “V” sebagai VSD. Karena kecepatan putaran motor yang berpotensi berbeda, laju aliran udara pada kecepatan tetap mewakili nilai minimum dalam rentang (misalnya 30 kW, 8 bar, 5,67 m³/menit), sementara VSD dapat mencapai nilai maksimum pada beban penuh.
Tegangan standar Pada tegangan 380V (+/-10%), 50Hz +/-2%, dan tersedia untuk tegangan kustom 220/380/440/460V/60Hz.
Dalam kondisi ketinggian yang tinggi, suhu ekstrem, kelembapan berlebihan, paparan debu yang berat, atau lingkungan operasional menantang lainnya, kami dapat menawarkan desain produk yang disesuaikan untuk memenuhi kebutuhan spesifik Anda. Penyesuaian tersedia untuk menyesuaikan dengan persyaratan unik Anda.
Two-stage air end low-voltage Design
● The two-stage air end offers 15% increased efficiency compared to single-stage equipment；
● The double-level low voltage main machine offeres 6-10 percent more efficiency than the two-stage main machine.
Double frequency conversion system
Constant temperature and pressure output is commonly used in industrial equipment.
The constant temperature output is typically set at around 81°C to avoid the problem of high temperature shutdowns, while the constant pressure output has an accuracy of ±0.005 MPa.
Motor magnet permanen hemat energi dengan efisiensi tinggi
Permanent magnet variable frequency motors provide many advantages for users in terms of energy savings. By eliminating no-load losses and reducing running torques, these motors offer higher efficiency when compared to traditional AC motors. For applications that require frequent starting and stopping, variable frequency motors maintain their high efficiency levels and meet first-level energy efficiency ratings.
Sistem pendingin besar yang disesuaikan
The cooling system is designed to keep the temperature at a constant level. Its features include an increased radiator surface area with rust and corrosion resistant coatings, as well as a low oil temperature which prevents carbon deposits and high-temperature occurrences. Additionally, the use of large variable frequency fans or centrifugal fans in units over 75 kW ensures even heat distribution, low noise levels, and large air volume.

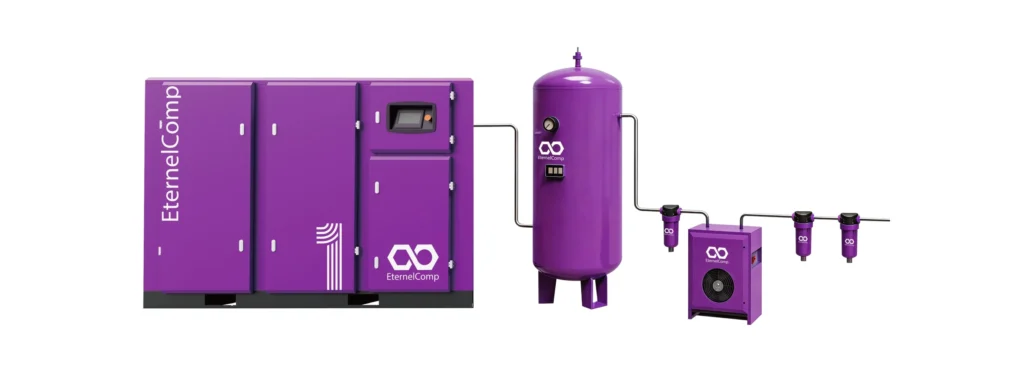

Installation Diagram for Low Pressure Two-stage VSD Srcew Air Compressor
Cari
Semua Produk
Hubungi Kami
Mencari solusi udara terkompresi terbaik untuk industri Anda?
● Bagikan persyaratan Anda untuk evaluasi oleh ahli (dukungan multibahasa).
● Mengembangkan solusi yang disesuaikan, dengan mempertimbangkan opsi seperti tingkat IP, unit kompresor udara dan suku cadang, bahasa antarmuka, kontrol jarak jauh, tampilan, adaptasi tegangan dan suhu, dll.
● Mulai produksi setelah konfirmasi pesanan (waktu produksi standar: 20-25 hari).
● Lakukan pengujian kualitas yang ketat sebelum pengiriman.
● Dukungan teknis seumur hidup, dukungan suku cadang asli untuk perawatan, dan garansi hingga 10 tahun untuk bagian udara.
Pertanyaan yang Sering Diajukan
What is Low Pressure Two-stage VSD Screw Air Compressor?
Kompresor Udara Sekrup VSD Dua Tahap Tekanan Rendah adalah jenis kompresor udara yang menggunakan dua tahap kompresi untuk menghasilkan udara bertekanan. Kompresor ini dilengkapi dengan sistem Variable Speed Drive (VSD) yang memungkinkan pengoperasian yang hemat energi dan dapat menyesuaikan kecepatan kompresor agar sesuai dengan kebutuhan udara. Kompresor jenis ini biasa digunakan pada industri seperti otomotif, makanan dan minuman, serta farmasi.
How does a Low Pressure Two-stage VSD Srcew Air Compressor work？
A Low Pressure Two-stage VSD Screw Air Compressor works by using two stages of compression to increase the pressure of air. The first stage compresses the air to an intermediate pressure, which is then cooled before entering the second stage. In the second stage, the air is compressed to the desired pressure and then delivered to the system. The Variable Speed Drive (VSD) technology allows for the compressor to adjust its speed to match the air demand, resulting in energy savings and increased efficiency.
What are the tips for starting up the Low Pressure Two-stage VSD Srcew Air Compressor?
Some tips for starting up a Low Pressure Two-stage VSD Screw Air Compressor include checking the oil level and ensuring it is at the correct level, checking the air filters and cleaning or replacing them if necessary, checking the belts and pulleys for any damage or wear, and checking the electrical connections to ensure they are secure. It is also important to follow the manufacturer’s instructions for starting up the compressor.
