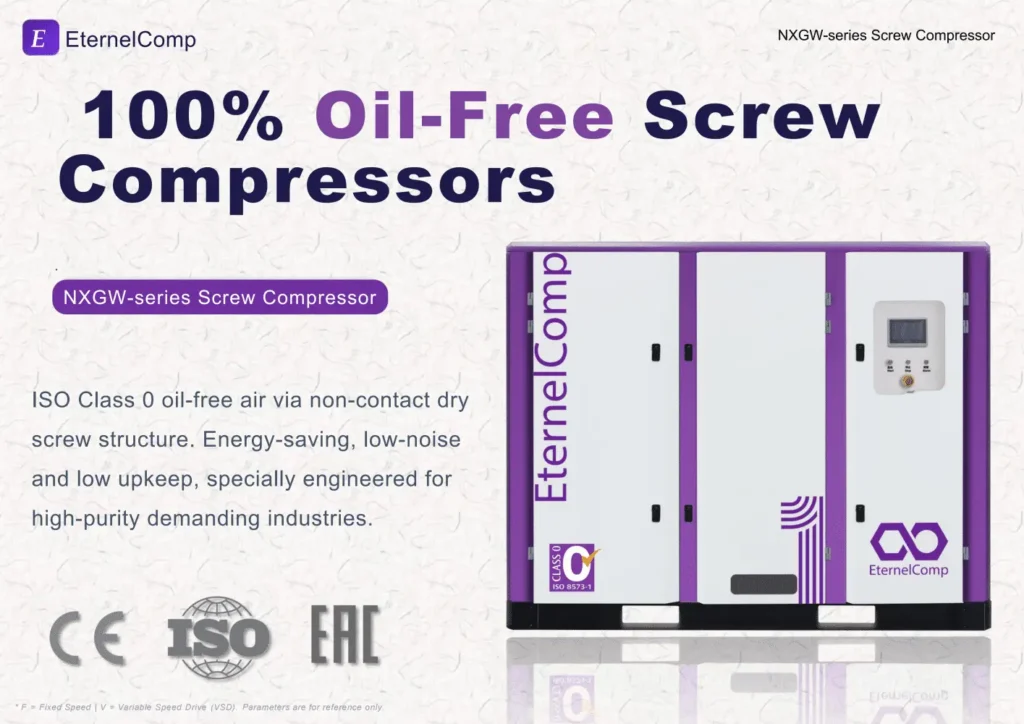

Compressore a vite senza olio serie NXGW 100%
Compressore a vite senza olio serie NXGW 100%
Pressione nominale: 7-10 bar, 101.5-145 psi
Air Flow @ Outlet: 5.1-50.9 m³/min, 180.1-1768.9 cfm
Potenza: 45-315 kW, 60-420 hp
Features of the NXGW-Series 100% Oil-free Screw Compressor
NANXIANG 100% oil-free screw compressor is a flagship product in our company’s oil-free compressor series.
100% Oil-Free Air: Adheres to ISO 8573-1:2010 Class 0 standards, specifically designed for air quality in industries such as food and beverage, pharmaceuticals, textiles, and electronics.
Energy Efficiency: The air end incorporates an optimized rotor profile, achieving a notable 13.5% improvement in efficiency and leading airflow capacity for enhanced energy conservation.
Enhanced Reliability: Equipped with stainless steel components, dual-vented seals, and precision-machined rotors featuring advanced “Ultra Coating” protection, ensuring trouble-free operation and heightened reliability.
Ease of Maintenance: Drastically reduce maintenance expenses with extended maintenance intervals and patented long-life consumables, ensuring optimal performance while minimizing the need for replacements.
High Ambient Operation: Engineered with durable components capable of withstanding a maximum ambient temperature of 46°C. Additionally, an optional High Ambient package is available, designed to endure a maximum ambient temperature of 55°C, further enhancing operational resilience.
| Modello n. / Tipi di azionamento | Potenza (kW/CV) | Pressione nominale (bar) | Air Flow @ Outlet(m³/min) | Dimensioni (mm) | Peso (kg) | Diametro del tubo di scarico dell'aria |
|---|---|---|---|---|---|---|
| NXGW-45V NXGW-45F | 45 / 60 | 7 | 7.70 | 2500*1600*2080 (A) | 2600 | DN50 |
| 8 | 6.73 | |||||
| 10 | 5.10 | |||||
| NXGW-55V NXGW-55F | 55 / 75 | 7 | 9.60 | 2500*1600*2080 (A) | 2600 | DN50 |
| 8 | 8.94 | |||||
| 10 | 7.78 | |||||
| NXGW-75V NXGW-75F | 75 / 100 | 7 | 12.12 | 2500*1600*2080 (A) 2300*1600*1790 (W) | 2800 | DN50 |
| 8 | 12.10 | |||||
| 10 | 11.10 | |||||
| NXGW-90V NXGW-90F | 90 / 120 | 7 | 13.13 | 2500*1600*2080 (A) 2300*1600*1790 (W) | 2800 | DN50 |
| 8 | 13.11 | |||||
| 10 | 13.00 | |||||
| NXGW-110V NXGW-110F | 110 / 150 | 7 | 19.50 | 2800*1800*1860 (A) | 3000 | DN65 |
| 8 | 18.31 | |||||
| 10 | 16.00 | |||||
| NXGW-132V NXGW-132F | 132 / 175 | 7 | 23.0 | 2800*1800*1860 (A) | 3300 | DN65 |
| 8 | 21.66 | |||||
| 10 | 19.44 | |||||
| NXGW-160V NXGW-160F | 160 / 215 | 7 | 26.30 | 2800*1800*1860 (A) | 3400 | DN65 |
| 8 | 26.23 | |||||
| 10 | 23.00 | |||||
| NXGW-185V NXGW-185F | 185 / 250 | 7 | 29.17 | 2800*1800*1860 (A) | 3600 | DN65 |
| 8 | 29.13 | |||||
| 10 | 26.23 | |||||
| NXGW-200V NXGW-200F | 200 / 270 | 7 | 35.00 | 3100*1900*2200 (W) | 4400 | DN100 |
| 8 | 32.60 | |||||
| 10 | 29.05 | |||||
| NXGW-220V NXGW-220F | 220 / 300 | 7 | 37.63 | 3100*1900*2200 (W) | 4600 | DN100 |
| 8 | 35.10 | |||||
| 10 | 32.39 | |||||
| NXGW-250V NXGW-250F | 250 / 335 | 7 | 45.20 | 3400*1900*2200 (W) | 4700 | DN100 |
| 8 | 41.64 | |||||
| 10 | 37.32 | |||||
| NXGW-280V NXGW-280F | 280 / 335 | 7 | 45.50 | 3400*2200*2200 (W) | 4900 | DN100 |
| 8 | 45.44 | |||||
| 10 | 41.56 | |||||
| NXGW-315V NXGW-315F | 315 / 420 | 7 | 50.09 | 3400*2200*2200 (W) | 5100 | DN100 |
| 8 | 50.06 | |||||
| 10 | 45.37 |
Nota:
Note sul numero di modello: “F” indica velocità fissa, “V” indica VSD. A causa delle velocità di rotazione potenzialmente diverse dei motori, le portate d'aria della velocità fissa rappresentano il minimo nell'intervallo (ovvero 30 kW 8 bar 5,67 m³/min), mentre il VSD può raggiungere il massimo a pieno carico.
Tensione standard in 380 V (+/-10%), 50 Hz +/-2% e disponibile per tensioni personalizzate 220/380/440/460 V/60 Hz.
In caso di altitudini elevate, temperature estreme, umidità eccessiva, forte esposizione alla polvere o qualsiasi altro ambiente operativo difficile, siamo in grado di offrire prodotti progettati su misura per soddisfare le vostre esigenze specifiche. È possibile personalizzare i prodotti in base alle vostre esigenze specifiche.
Core Component Highlights of the NXGW-Series 100% Oil-free Screw Compressor
Air End --- Ruggedly reliable 2 stage compression modules
The compressor air end boasts a worldwide reputation for zero failure and low maintenance cost. The GW-Series two stage compressor air ends lower the heat load of different stages. The 2nd stage rotors are constructed of stainless steel to resist moisture corrosion. (GHH-RAND air end is available)
Ultra Coating
The unique “Ultra Coating” adopts Molylbdenumdisulfide (MoS2) matrix compound, featuring high rigidity and unmatched adhesion and anti-oxidation properties, is robotically applied to the rotor’s surface to obtain the uniform coating, which can overcome high temperatures as high as 300°C. The Ultra Coating is as hard as metal and will only peel off when removed mechanically.
Additionally, the screw rotors are shot blasted before this coating process to improve the surface roughness to facilitate the coating adhering. The superior performance of the Ultra Coating helps the compressor units of the customers to realize the continuous operation overtime without diminish in capacity.
Rather than using the robotically uniform coating, most competitors apply flexible Teflon coating, which will fall out during constant operation due to the thermal expansion and water vapor corrosion, thus will generate increased rotor clearance. This situation will lead to 8%-10% diminished capacity and total operation cost of the unit increased.
Superior Sealing Design to Ensure Oil-free of The Air Compression Chamber
The compression units utilize unique triple sealing design and isolate the oil paths of the bearing lubrication from the air paths in order to ensure the oil free quality of the compressed air.
● SS Air Seal- Eliminates air leakage to oil path (bearing seat/gear)
● Labyrinth Oil Seal – Eliminates oil leaks to the airend
● Oil Discharge Seal – Once the oil leakage occurs in the above seals, oil seal will vent the oil to the atmosphere to prevent bearing oil from seeping into the air seal area.
Stainless-steel Rotors
The rotors are designed with stainless steel to prevent water vapor from corroding the surface of the compressor air end rotors and causing machine failure.
It adopts 3:4/4:6 ratio high-performance tooth profile. The gap between the rotors is as low as 0.01mm. It has low power consumption, low noise and high efficiency.
Synchronized Gear
The gear accuracy is AGMA level 13, with a long operating life, low transmission loss, and significantly reduced noise and vibration. The helical gear effectively reduces the axial load of the bearing, protects the bearing and extends its service life.
Intelligent Colored Touch Screen Control Panel
● Brand Options: PLT and INOVANCE, available model numbers: For fixed speed, MAM-860/880/890; for VSD, MAM-6070/6080/6090, IT7000/7070;
● Provides a user-friendly interface that displays real-time operating data, including max. 100-time status updates and fault alerts without time limitation;
● Offers online monitoring/sensoring of pressure, power, air flow rate and temperature fluctuations;
● The system has the capability to monitor faults in real-time and record alarm logs, as well as schedule automatic power on/off functions.
Cooler
Independent inter-stage cooler and after-cooling, enlarged design, more suitable for working conditions; the air-cooling uses stainless steel pre-cooler and aluminium alloy fin cooler, and the water-cooling uses stainless steel, which has good heat discharge, small flow loss, high anti-corrosion performance, high duration & anti-deformation under high workload, long-term hot and cold conditions, and long service life.
Motore personalizzato ad alta efficienza IE3/IE4 a risparmio energetico (magnete permanente)
● Utilize the high-efficiency fixed speed IP54 motor and more energy-saving permanent magnet IP55 motor. Class F Insulation level as a standard, S.F. ≥1.2 to make sure the larger-size motor can stand high-volume (unstable) current and high temperature;
● Its bearings are heavy-duty SKF bearings from Sweden, which is approx. 70000 hours service lifetime @9 bar and its efficiency is 5%-10% higher than similar products;
● Run smoothly at higher rotation speed with low noise and vibration because of its high-balance precision.
Intelligent Double-VSD Inverter System
The system of permanent variable speed rotary screw air compressor features the use of high-performance vector frequency IP23 inverters from INOVANCE (CP-700 / MD-500), which is the top brand in China. (IP54 and IP65 available for customization)
It also boasts a user-friendly interface that allows for easy switching between Chinese e English languages, or even a third language such as Russian e Spanish. Additionally, an optional Internet of Things cloud intelligence system can be applied for the remote control.
VSD Centrifugal Fan
The VSD centrifugal fan boasts the space-saving design, 20% more efficient cooling, and quiet operation. Its smooth performance and easy maintenance make it a reliable choice. Additionally, it features variable frequency control for constant temperature control and less electricity consumption.
Schema di installazione (normale)
Cerca
Tutti i prodotti
Contattaci
Cerchi la migliore soluzione di aria compressa per il tuo settore?
● Condividi le tue esigenze per una valutazione da parte di esperti (assistenza multilingue).
● Sviluppare soluzioni personalizzate, considerando opzioni quali livello IP, compressore e parti, lingua dello schermo, controllo remoto, aspetto, adattamento di tensione e temperatura, ecc.
● Avvio della produzione dopo la conferma dell'ordine (tempi di produzione standard: 20-25 giorni).
● Eseguire rigorosi test di qualità prima della spedizione.
● Assistenza tecnica a vita, ricambi originali e garanzia fino a 10 anni sul compressore.
Domande frequenti
Does 100% oil-free air compressor (also called dry oil-free air compressor) require oil for lubrication?
A 100% oil-free air compressor is a type of air compressor that does not require oil for lubrication. Instead, it uses other methods such as water or special coatings to reduce friction and prevent wear and tear. This makes them ideal for applications where oil contamination is a concern, such as in the food and beverage industry or in medical settings. They are also more energy-efficient and require less maintenance than traditional oil-lubricated compressors.
Is the output of 100% oil-free air compressor oil-free?
The quality of the compressed air produced by an oil-free air compressor is largely affected by the environment, so users need to configure corresponding post-processing equipment according to their own requirements for compressed air quality in order to meet their needs.
