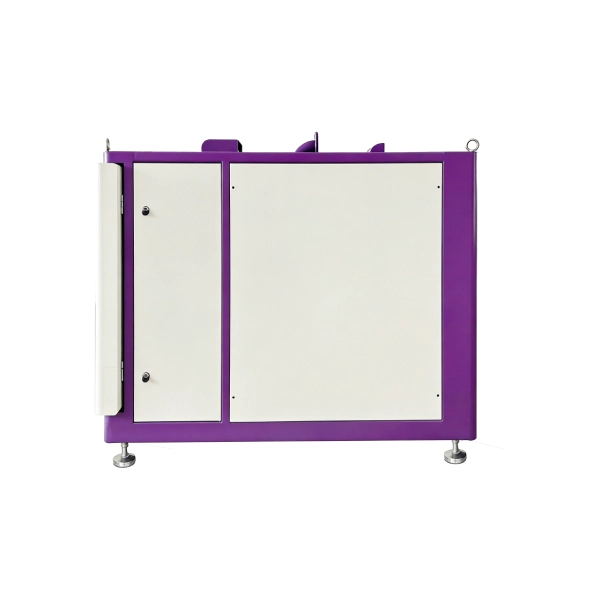

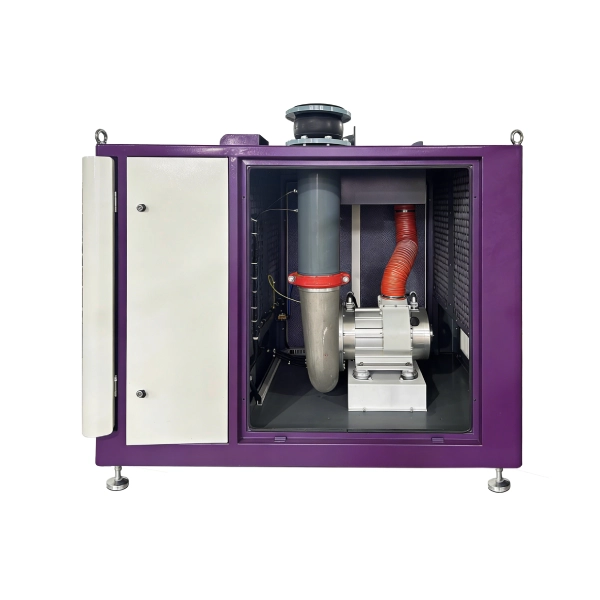

Maglev Bearing Turbo Blower
Maglev Bearing Turbo Blower
Pressure (kPa)：40-120
Cooling Method：Air Cooling/Air + Water
Drive Method：Direct
Outlet Diameter/DN：200-400
Features of the Maglev Bearing Turbo Blower
Maglev turbo blower is an energy-saving and eco-friendly product. Compared with traditional roots blowers, its average energy saving is 30% and the noise level can be lower than 80 dB. It storms the market as an emerging product for conventional industries such as cement, sewage treatment, paper making, steel, thermoelectricity, chemical industry,pharmaceutical, food, textile and so on.
Active Magnetic Bearing Technology
Uses active maglev bearings with contact-free operation, eliminating mechanical wear, reducing maintenance, and extending equipment lifetime.High-Efficiency VSD Control
Equipped with advanced variable speed drive (VSD) control for flexible speed regulation, stable performance, and optimized energy usage.Exceptional Energy Savings
Delivers up to 45% energy savings compared with traditional Roots blowers, significantly reducing operating costs.Air / Water Cooling System
Integrated air or water cooling system ensures stable, efficient operation even under continuous or demanding working conditions.Oil-Free and Low-Noise Operation
Requires no lubrication oil, producing clean, oil-free compressed air with low noise levels, ideal for environmentally sensitive applications.Eco-Friendly Design
Frictionless magnetic bearings minimize energy loss and failure rates, supporting sustainable and environmentally responsible operation.Long Service Life & Easy Maintenance
Designed for over 25 years of service life, with simple maintenance requirements—only regular filter replacement is needed.
| Model Free Air Delivery Parameter | FAD (m³/min) | Pressure (kPa) | Power (kW) | Cooling Method | Drive Method | Outlet Diameter/DN | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 50 | 60 | 70 | 80 | 90 | 100 | 120 | ||||||
| NXMB-37 | m³/min | 41 | 38 | 34 | 30 | 27.5 | 25 | / | / | 37 | Air Cooling | Direct | 200 |
| NXMB-55 | 68 | 58 | 49 | 45 | 41 | 37 | / | / | 55 | ||||
| NXMB-75 | 87 | 77 | 69 | 62 | 54 | 50 | / | / | 75 | ||||
| NXMB-90 | 100 | 91 | 82 | 74 | 67 | 61 | 51 | / | 90 | 250 | |||
| NXMB-110 | 115 | 107 | 99 | 91 | 84 | 74 | 63 | 55 | 110 | ||||
| NXMB-132 | 146 | 134 | 121 | 108 | 98 | 90 | 80 | 68 | 132 | 300 | |||
| NXMB-150 | 177 | 162 | 146 | 131 | 119 | 108 | 96 | 80 | 150 | ||||
| NXMB-200 | 221 | 202 | 183 | 164 | 149 | 136 | 120 | 100 | 200 | Air + Water | 400 | ||
| NXMB-250 | 277 | 253 | 228 | 205 | 186 | 170 | 152 | 125 | 250 | ||||
| NXMB-300 | 332 | 304 | 274 | 246 | 223 | 204 | 170 | 140 | 300 | ||||
| NXMB-350 | 465 | 385 | 325 | 285 | 255 | 218 | 195 | 180 | 350 | ||||
Search
All Product
Contact Us
Application of the Maglev Bearing Turbo Blower
Designed for continuous and reliable operation, the Maglev Bearing Turbo Blower is commonly applied in Food Fermentation, steel smelting, automobile, Biological Pharmacy, Cement Production, and Sweage Treatment. The following images illustrate its usage in real-world application environments.
Looking for the Best Compressed Air Solution for your industry?
● Share your requirements for expert evaluation (multilingual support).
● Develop customized solution, considering options such as IP level, air end and parts, screen language, remote control, appearance, voltage and temperature adaptation, etc.
● Start production after order confirmation (standard production time: 20-25 days).
● Conduct rigorous quality testing before shipping.
● Lifelong technical support, original maintenance parts support, and up to 10-year warranty on the air end.
Frequently Asked Questions
What is a maglev bearing turbo blower?
A maglev bearing turbo blower uses active magnetic bearings to support the rotor without physical contact. This eliminates mechanical friction, reduces wear, and enables high-efficiency, maintenance-free operation.
How much energy can be saved compared with traditional Roots blowers?
Compared with Roots blowers, energy consumption can be reduced by up to 45%, especially under variable load conditions, significantly lowering long-term operating costs.
Does the blower require lubrication oil?
No. The maglev bearing system operates without lubrication oil, ensuring oil-free and clean compressed air while eliminating oil-related maintenance and contamination risks.
