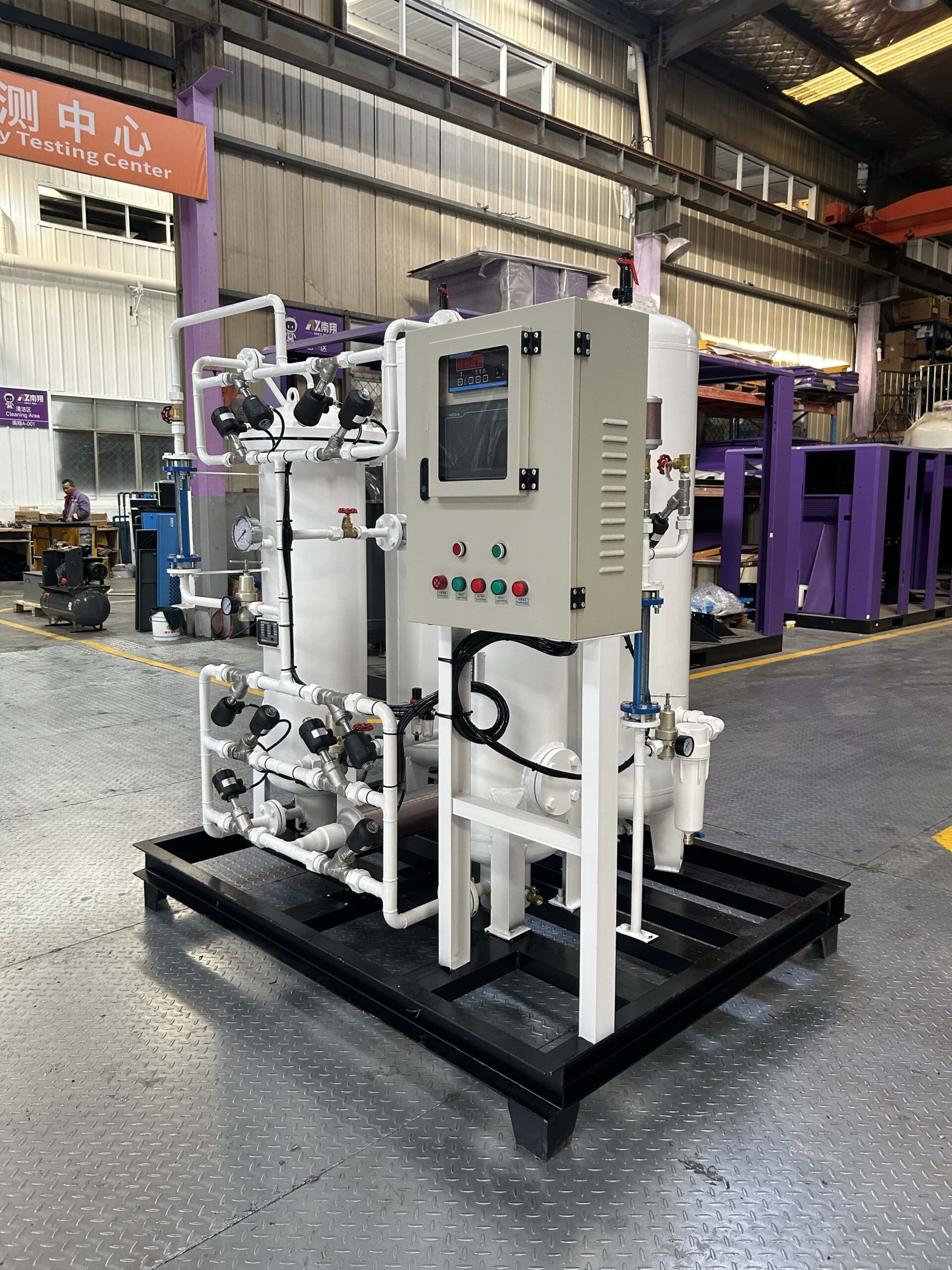

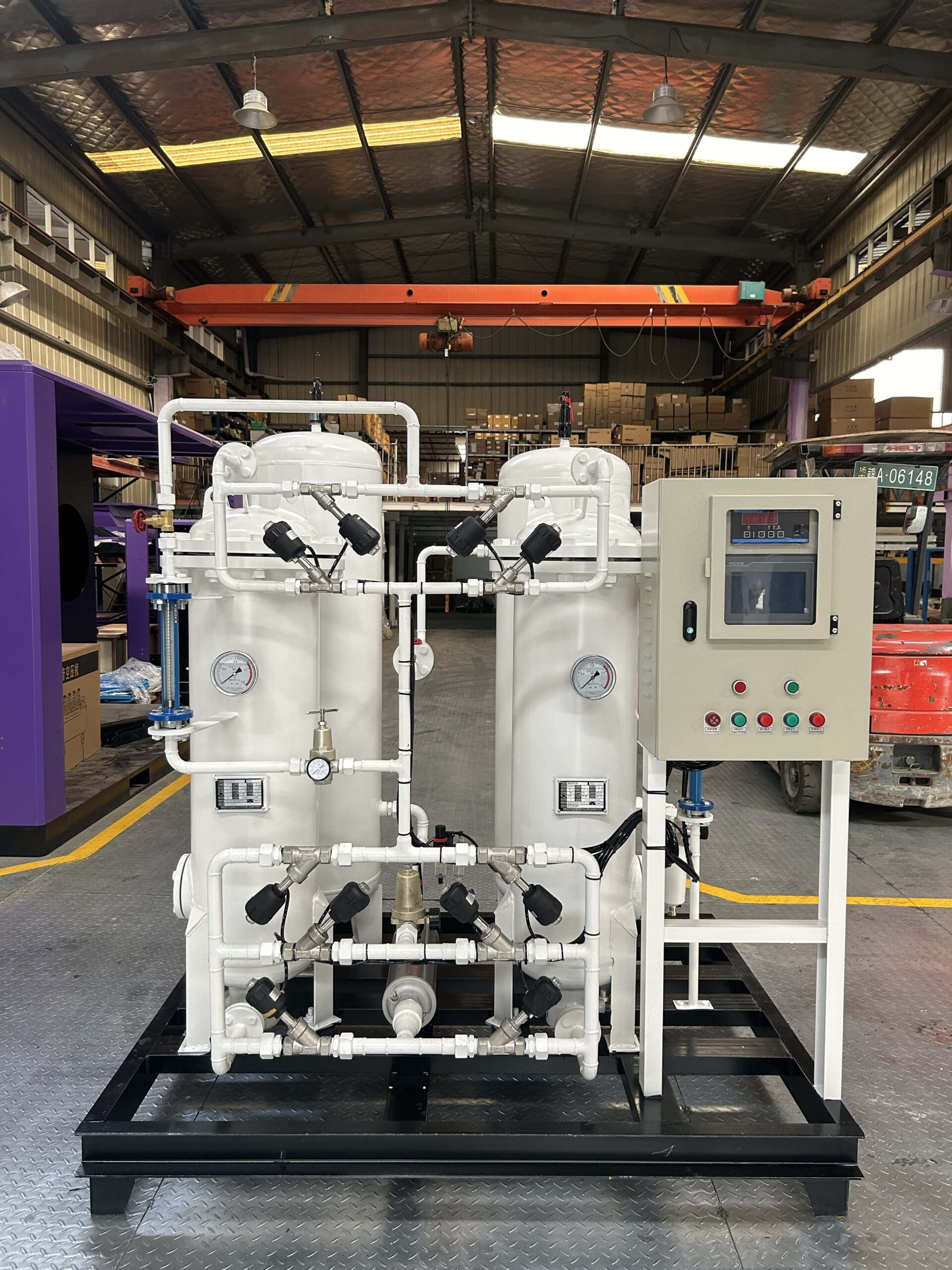

PSA Oxygen Generator
PSA Oxygen Generator
Oxygen Flow: 3–400 Nm³/h
Oxygen Purity: 93% ±3 (Standard)
Inlet Pressure: 0.6 MPa
Discharge Oxygen Pressure: 0.1–0.5 MPa (Adjustable)
Noise Level: < 80 dB(A)
Features of the PSA Oxygen Generator
- Stable oxygen purity：Ensuring qualified clinical oxygen usage
- Reasonable structure, stable and low energy consumption：Stable and adjustable oxygen pressure, purity and flow rate
- Issuing alarm signal against abnormal parameters：The system detects the moisture content of the compressed air in real time online
- Low maintenance cost：No consumables: The core component is molecular sieve (usually 8 to 10 years)
- LCD touch screen interface： Making seeting of operating parameters more convenient
- Environmentally friendly and safe： consuming electricity and does not producing harmful byproducts
Core Component Highlights of the PSA Oxygen Generator

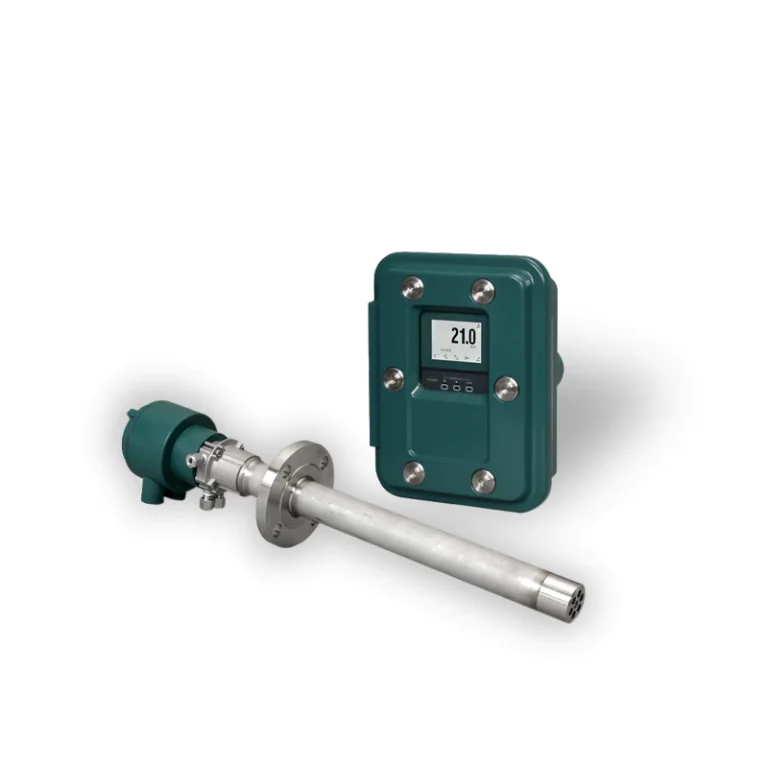

Oxygen analyzer
●Contributes to OPEX reduction, and continuously measures oxygen concentration and humidity under high temperature without the need for a sampling device;
●This analyzer consists basically of a probe and a converter that are used as both a Zirconia Oxygen Analyzer and High Temperature Humidity Analyzer;
●The converter uses a digital display, displays the cell temperature and cell emf in addition to the oxygen concentration and includes a Human Machine Interface (HMI), that offers easy touch screen operation. This analyzer is most suitable for monitoring the oxygen concentration of combustion gases in large or small boilers, various industrial furnace and combustion devices, or for the control of low-oxygen combustion.
Pneumatic valves
●The valve body adopts a one-piece design to avoid possible leakage caused by the connection of the middle flange;
●The valve stem and the spool are connected by splines, which has good alignment, large bearing torque, eliminates the gap, and improves the valve adjustment accuracy;
●The upper and lower valve stems are fixed by self-lubricating bearings, which has high rotation accuracy and good transmission stability.
Solenoid valves
●Patented technology products, can last for a long time to power on for 365 days to replace normally open valves；
●Adopt diaphragm structure, low requirements for medium cleanliness；
●The valve flow coefficient is 10% higher than that of ordinary valves；
●Adopt special sealing structure and imported synthetic rubber seal without leakage.
| Model | Capacity (Nm³/h） | Demension(mm) | Weigh（kg） | air inlet | oxgen outlet |
|---|---|---|---|---|---|
| NXO-3 | 3 | 760*750*1850 | 380 | DN15(G1/2") | DN15(G1/2") |
| NXO-5 | 5 | 760*750*2250 | 450 | DN15(G1/2") | DN15(G1/2") |
| NXO-10 | 10 | 880*780*2400 | 780 | DN20(G3/4") | DN15(G1/2") |
| NXO-15 | 15 | 1070*940*2500 | 1080 | DN25(G1") | DN20(G3/4") |
| NXO-20 | 20 | 1450*950*2500 | 1260 | DN32(G11/4") | DN20(G3/4") |
| NXO-30 | 30 | 1500*1000*3000 | 1680 | DN40(G11/2") | DN25(G1") |
| NXO-40 | 40 | 1750*1200*3150 | 2150 | DN40(G11/2") | DN25(G1") |
| NXO-50 | 50 | 2000*1350*3300 | 2500 | DN40(G11/2") | DN25(G1") |
| NXO-60 | 60 | 2288*1599*3500 | 2900 | DN40(G11/2") | DN25(G1") |
| NXO-80 | 80 | 2600*1750*3700 | 3400 | DN40(G11/2") | DN25(G1") |
Note:The data in this table are based on 8 Bar feed air, 20℃ ambient temperature, 0 m gauge, and 80% relative humidity.
The data provided in this sample is for reference only.
Search
All Product
Contact Us
Regular installation Flow
Looking for the Best Compressed Air Solution for your industry?
● Share your requirements for expert evaluation (multilingual support).
● Develop customized solution, considering options such as IP level, air end and parts, screen language, remote control, appearance, voltage and temperature adaptation, etc.
● Start production after order confirmation (standard production time: 20-25 days).
● Conduct rigorous quality testing before shipping.
● Lifelong technical support, original maintenance parts support, and up to 10-year warranty on the air end.
Frequently Asked Questions
What is the oxygen purity of the PSA Oxygen Generator?
The generator provides stable oxygen purity suitable for clinical and industrial applications, ensuring qualified oxygen usage.
How energy-efficient is the system?
The generator features a reasonable and optimized structure, delivering stable oxygen with low energy consumption. Oxygen pressure, purity, and flow rate are adjustable to meet specific needs.
Does the system have any safety or alarm features?
Yes. The generator monitors compressed air moisture content in real time and issues alarm signals if any abnormal parameters are detected, ensuring safe and reliable operation.
