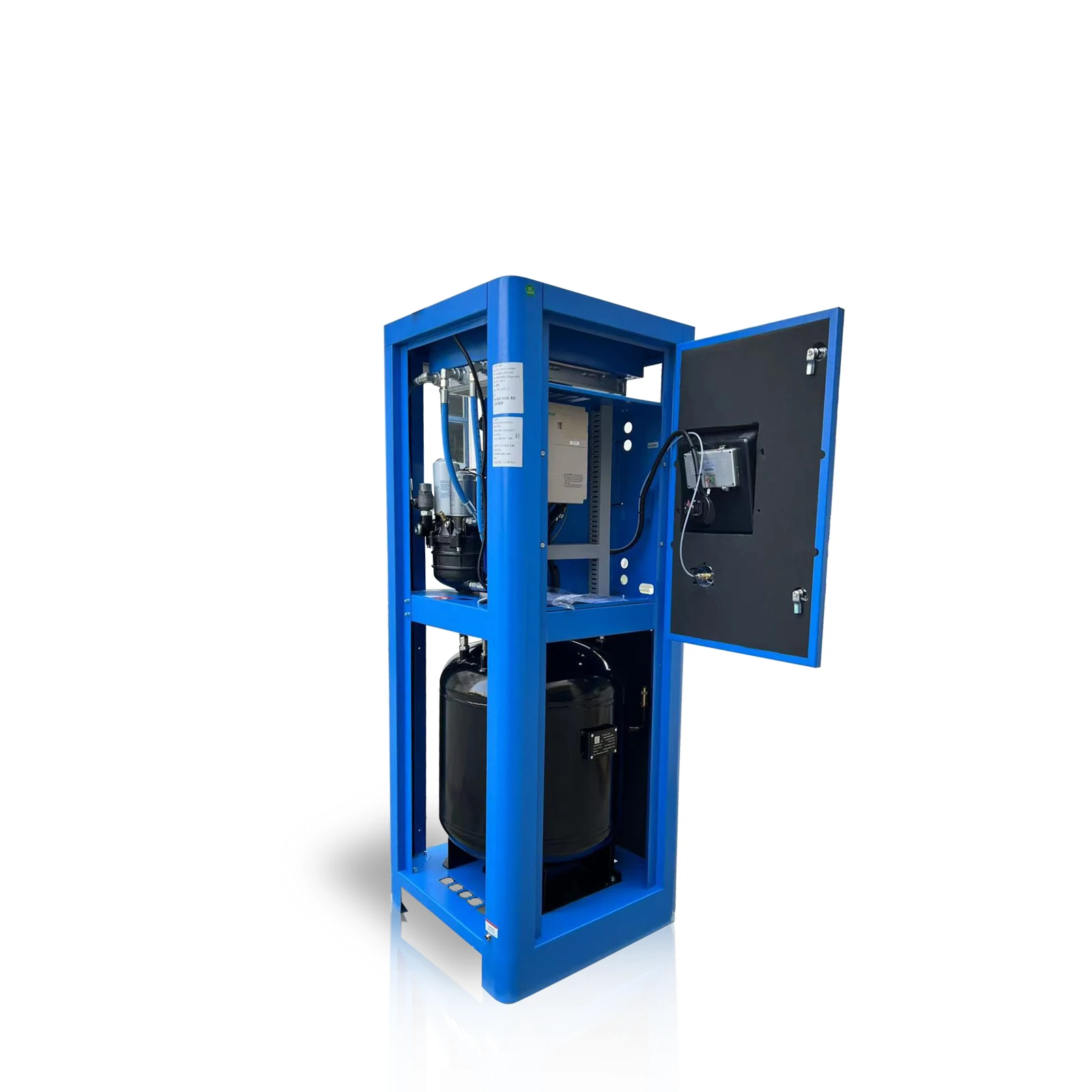

Mini Series Vertical Air Compressor
Mini Series Vertical Air Compressor
- Working Pressure: 0.8-1.25 MPa
- Free Air Delivery: 180-1200 L/min
- Working Power: 3.7-9 kW, 5-12hp
Features of the Mini Series Vericial Air Compressor
● The vertical design of air compresor saves space in your workshop or garage.
● All-in-one compressed air system, easy to use and maintain.
● The patented Zero-Energy circuit control optimize energy usage during the drying process. The system automatically stops the dryer when the compressor is not in use or in unloading mode, ensuring that energy is only used for drying. Additionally, the system continuously monitors the dew point and restarts the dryer when the dew point begins to rise, ensuring efficient and effective drying.
● Not only purifies the air but also reduces harmful allergens. By creating a germ-free environment, it ensures that the air you breathe is safe and healthy for you.
● By incorporating external filters with freeze dryers, this system can effectively remove moisture, suspended particles, and dust particles, providing a boost in efficiency and accuracy.
● By providing high quality dry air, downstream equipment is protected from damage and can operate more efficiently.
| Model | Power(kW) | Horse Power(HP) | Voltage(V) | Working Pressure(bar) | Air Flow (L/min) | air tank(L) | Dimension(mm) | Air Outlet Pipe Dia(inch) |
|---|---|---|---|---|---|---|---|---|
| N5X | 3.7 | 5 | 380 | 8 | 200-400 | 200 | 950*1125*1800 | G1/2 |
| N5X | 3.7 | 5 | 380 | 10 | 175-350 | 200 | 950*1125*1800 | G1/2 |
| N5X | 3.7 | 5 | 380 | 12.5 | 150-300 | 200 | 950*1125*1800 | G1/2 |
| N7X | 5.5 | 7 | 380 | 8 | 315-630 | 200 | 950*1125*1800 | G1/2 |
| N7X | 5.5 | 7 | 380 | 10 | 260-520 | 200 | 950*1125*1800 | G1/2 |
| N7X | 5.5 | 7 | 380 | 12.5 | 190-380 | 200 | 950*1125*1800 | G1/2 |
| N10X | 7.5 | 10 | 380 | 8 | 490-980 | 200 | 950*1125*1800 | G1/2 |
| N10X | 7.5 | 10 | 380 | 10 | 450-900 | 200 | 950*1125*1800 | G1/2 |
| N10X | 7.5 | 10 | 380 | 12.5 | 400-800 | 200 | 950*1125*1800 | G1/2 |
| N12X | 9 | 12 | 380 | 8 | 600-1200 | 200 | 950*1125*1800 | G1/2 |
| N12X | 9 | 12 | 380 | 10 | 540-1080 | 200 | 950*1125*1800 | G1/2 |
| N12X | 9 | 12 | 380 | 12.5 | 460-920 | 200 | 950*1125*1800 | G1/2 |
Note:
Model number remarks: “F” as fixed speed, “V” as VSD. Due to the potentially different rotation speeds of motors, the air flow rates of fixed speed represent the minimum in the range (i.e 30kW 8 bar 5.67m³/min), while VSD can reach the maximum at full loading.
Standard voltage in 380V (+/-10%), 50Hz +/-2% and available for customized voltage 220/380/440/460V/60Hz.
In cases of elevated altitudes, extreme temperatures, excessive humidity, heavy dust exposure, or any other challenging operational environments, we can offer tailored product designs to meet your specific needs. Customization is available to align with your unique requirements.
Core Component Highlights of the Mini Series Vericial Air Compressor
Air End
Featuring in a high-efficiency mainframe that utilizes six bearings and a Morse taper connection. This design ensures a smooth and quiet operation, while also providing a long lifespan for the machine.
Motor
The IE4 permanent magnet inverter motor can provide faster and more efficient performance. This type of motor uses advanced technology to optimize energy usage and reduce waste, resulting in a more eco-friendly and cost-effective solution for air compression needs
Fan
The exciting new enlarged rotor fan design provides fast heat dissipation, low noise and a slim design to boost performance.
Inverter
The Standard Inverter features a heavy-duty chassis and comes complete with the necessary accessories to support your projects.
Control panel
The traditional 860 operation panel has been redesigned with a sleek, new look. This allows it to be more mobile, safe and easy to operate.
Cooler
The cooler emits a rapid flow of cool air, which effectively cools the surrounding area.
Filter
The filter of the integrated air compressor boasts a distinctive hexagonal design, complete with side holes that make it easy to check the oil level. Additionally, it features a water cooler that is mounted on a multi-plate screw-type bearing, which is made of copper for optimal heat dissipation.
Intake Valve
The intake valve can makes controlling the air intake effect more convenient. With improved cooling and airflow efficiency, it is ideal for large ventilation systems and provides excellent cooling performance.
Search
All Product
Contact Us
Looking for the Best Compressed Air Solution for your industry?
● Share your requirements for expert evaluation (multilingual support).
● Develop customized solution, considering options such as IP level, air end and parts, screen language, remote control, appearance, voltage and temperature adaptation, etc.
● Start production after order confirmation (standard production time: 20-25 days).
● Conduct rigorous quality testing before shipping.
● Lifelong technical support, original maintenance parts support, and up to 10-year warranty on the air end.
Frequently Asked Questions
What is Mini Series Vertical Air Compressor？
Small piston air compressors (displacement <6cfm) (referred to as “small air compressors”) are significantly different from industrial piston air compressors in application fields and end users. There are also great differences in product reliability requirements, appearance design and other aspects. Industrial piston air compressors provide large flow air power for mining, electric power, metallurgy and other industrial sites. Small air compressor is mainly connected with air nail gun, air gun, pneumatic wrench, ratchet wrench, butter gun, spray gun, grinder and other household pneumatic tools, to provide small flow of air power for residential, public buildings and automobile maintenance shops and other family and commercial places.
How does Mini Series Air Compressor Vertical Type work?
Small piston air compressors (displacement <6cfm) (referred to as “small air compressors”) are significantly different from industrial piston air compressors in application fields and end users. There are also great differences in product reliability requirements, appearance design and other aspects. Industrial piston air compressors provide large flow air power for mining, electric power, metallurgy and other industrial sites. Small air compressor is mainly connected with air nail gun, air gun, pneumatic wrench, ratchet wrench, butter gun, spray gun, grinder and other household pneumatic tools, to provide small flow of air power for residential, public buildings and automobile maintenance shops and other family and commercial places.
What are the key advantage of Mini Series Vertical Air Compressor？
With an ultra-compact size and lightweight features, you can get around more easily.
