T-Series Low Pressure Screw Compressors
T-Series Low Pressure Screw Compressors
- Rated Pressure: 0.15-0.4 MPa, 1.5 -4 Bar, 22-58 psi
- Air Flow@ Outlet: 12.8-71 m³/min
- Power: 30-280 kW, 40-375 hp
Features of the T-Series Low Pressure Screw Compressors
Many industries that require low pressure air still use screw air compressors with a pressure range of 0.7-1.0 MPa, which wastes a significant amount of electricity by using pressure reducing valves to meet the requirements of compressed air usage. In response to the call for energy conservation and emission reduction, Nanxiang has developed low pressure screw air compressor (One stage VSD screw type) based on market demand.
● High performance is guaranteed by using large rotors and low speeds in the machine.
●The cooling area of the oil cooler has been increased by over 30%, ensuring that it can maintain normal operation without overheating during the summer.
●The internal design of the machine was independently developed, optimizing the input-to-power ratio.
Core Component Highlights of the Low Pressure Screw Air Compressor
| Model No. / Drive Types | Power (kW/HP) | Rated pressure (bar) | Air Flow @ Outlet (m³/min) | Dimensions (mm) | Weight (kg) | Air Outlet Pipe Diameter |
|---|---|---|---|---|---|---|
| NXT-37V-1.5 | 37 / 50 | 1.5 | 16 | 2290*1690*1890 | 2500 | DN100 |
| NXT-45V-1.5 | 45 / 60 | 18 | 2290*1690*1890 | 2600 | DN100 | |
| NXT-55V-1.5 | 55 / 75 | 23.1 | 2420*1740*2000 | 3000 | DN125 | |
| NXT-75V-1.5 | 75 / 100 | 31.9 | 3150*1950*2220 | 4800 | DN150 | |
| NXT-90V-1.5 | 90 / 120 | 38.8 | 3150*1950*2220 | 4900 | DN150 | |
| NXT-30V-1.5 | 30 / 40 | 12.8 | 2000*1500*1785 | 2000 | DN80 | |
| NXT-110V-1.5 | 110 / 150 | 50.3 | 3300*2050*2250 | 6500 | DN150 | |
| NXT-132V-1.5 | 132 / 175 | 56.6 | 3300*2050*2250 | 6900 | DN150 | |
| NXT-150V-1.5 | 150 / 200 | 62.6 | 4400*2250*2400 | 8000 | DN200 | |
| NXT-160V-1.5 | 160 / 215 | 67.6 | 4400*2250*2400 | 8200 | DN200 | |
| NXT-185V-1.5 | 185 / 250 | 72.4 | 4400*2250*2400 | 8400 | DN200 | |
| NXT-30V-2 | 30 / 40 | 2 | 11.3 | 2000*1500*1785 | 2000 | DN80 |
| NXT-37V-2 | 37 / 50 | 14 | 2000*1500*1785 | 2400 | DN80 | |
| NXT-45V-2 | 45 / 60 | 16 | 2290*1690*1890 | 2600 | DN100 | |
| NXT-55V-2 | 55 / 75 | 21 | 2290*1690*1890 | 3000 | DN100 | |
| NXT-75V-2 | 75 / 100 | 28 | 2420*1740*2000 | 4300 | DN125 | |
| NXT-90V-2 | 90 / 120 | 36.5 | 3150*1950*2220 | 4900 | DN150 | |
| NXT-110V-2 | 110 / 150 | 47.2 | 3300*2050*2250 | 6500 | DN150 | |
| NXT-132V-2 | 132 / 175 | 51.8 | 3300*2050*2250 | 6900 | DN150 | |
| NXT-150V-2 | 150 / 200 | 56.5 | 3300*2050*2250 | 7100 | DN150 | |
| NXT-160V-2 | 160 / 215 | 62.8 | 3300*2050*2250 | 7300 | DN200 | |
| NXT-185V-2 | 185 / 250 | 70 | 4400*2250*2400 | 8400 | DN200 | |
| NXT-30V-2.5 | 30 / 40 | 2.5 | 10.1 | 2000*1500*1785 | 2000 | DN80 |
| NXT-37V-2.5 | 37 / 50 | 12.2 | 2000*1500*1785 | 2400 | DN80 | |
| NXT-55V-2.5 | 55 / 75 | 19.3 | 2290*1690*1890 | 3000 | DN100 | |
| NXT-75V-2.5 | 75 / 100 | 25.3 | 2420*1740*2000 | 4300 | DN125 | |
| NXT-90V-2.5 | 90 / 120 | 34.8 | 2900*1850*1920 | 4900 | DN125 | |
| NXT-110V-2.5 | 110 / 150 | 38.8 | 2900*1850*1920 | 5100 | DN125 | |
| NXT-132V-2.5 | 132 / 175 | 50.3 | 3300*2050*2250 | 6900 | DN150 | |
| NXT-150V-2.5 | 150 / 200 | 55 | 3300*2050*2250 | 7100 | DN150 | |
| NXT-160V-2.5 | 160 / 215 | 60.6 | 3300*2050*2250 | 7300 | DN200 | |
| NXT-185V-2.5 | 185 / 250 | 67.3 | 4400*2250*2400 | 8400 | DN200 | |
| NXT-200V-2.5 | 200 / 270 | 72.3 | 4400*2250*2400 | 8600 | DN200 | |
| NXT-37V-3 | 37 / 50 | 3 | 11.5 | 2000*1500*1785 | 2400 | DN80 |
| NXT-45V-3 | 45 / 60 | 13.8 | 2000*1500*1785 | 2500 | DN100 | |
| NXT-55V-3 | 55 / 75 | 17.6 | 2290*1690*1890 | 3000 | DN100 | |
| NXT-75V-3 | 75 / 100 | 23.1 | 2420*1740*2000 | 4300 | DN125 | |
| NXT-90V-3 | 90 / 120 | 32 | 2900*1850*1920 | 4900 | DN125 | |
| NXT-110V-3 | 110 / 150 | 36.8 | 2900*1850*1920 | 5100 | DN125 | |
| NXT-132V-3 | 132 / 175 | 47.2 | 3300*2050*2250 | 6900 | DN150 | |
| NXT-150V-3 | 150 / 200 | 50 | 3300*2050*2250 | 7100 | DN150 | |
| NXT-160V-3 | 160 / 215 | 56.6 | 3300*2050*2250 | 7300 | DN150 | |
| NXT-185V-3 | 185 / 250 | 62.9 | 3800*2400*2400 | 7500 | DN150 | |
| NXT-200V-3 | 200 / 270 | 67.6 | 4400*2250*2400 | 8600 | DN200 | |
| NXT-220V-3 | 220 / 300 | 72.3 | 4400*2250*2400 | 8800 | DN200 | |
| NXT-90V-3.5 | 90 / 120 | 3.5 | 29 | 2900*1850*1920 | 4900 | DN125 |
| NXT-110V-3.5 | 110 / 150 | 34.8 | 2900*1850*1920 | 5100 | DN125 | |
| NXT-132V-3.5 | 132 / 175 | 40.2 | 2900*1850*1920 | 5500 | DN125 | |
| NXT-150V-3.5 | 150 / 200 | 47.5 | 3300*2050*2250 | 7100 | DN150 | |
| NXT-160V-3.5 | 160 / 215 | 50.3 | 3300*2050*2250 | 7300 | DN150 | |
| NXT-185V-3.5 | 185 / 250 | 56.6 | 3300*2050*2250 | 7500 | DN150 | |
| NXT-200V-3.5 | 200 / 270 | 62.9 | 3800*2400*2400 | 8000 | DN150 | |
| NXT-220V-3.5 | 220 / 300 | 67.5 | 4400*2250*2400 | 8200 | DN200 | |
| NXT-250V-3.5 | 250 / 335 | 72 | 4400*2250*2400 | 8600 | DN200 | |
| NXT-37V-4 | 37 / 50 | 4 | 10.1 | 2000*1500*1785 | 2400 | DN80 |
| NXT-45V-4 | 45 / 60 | 11.2 | 2000*1500*1785 | 2500 | DN80 | |
| NXT-55V-4 | 55 / 75 | 16 | 2290*1690*1890 | 3000 | DN100 | |
| NXT-75V-4 | 75 / 100 | 21 | 2290*1690*1890 | 3000 | DN125 | |
| NXT-90V-4 | 90 / 120 | 25.6 | 2420*1740*2000 | 4400 | DN125 | |
| NXT-110V-4 | 110 / 150 | 31 | 2900*1850*1920 | 5100 | DN125 | |
| NXT-132V-4 | 132 / 175 | 38 | 2900*1850*1920 | 5500 | DN125 | |
| NXT-150V-4 | 150 / 200 | 40.2 | 2900*1850*1920 | 5700 | DN150 | |
| NXT-160V-4 | 160 / 215 | 47 | 3300*2050*2250 | 7300 | DN150 | |
| NXT-185V-4 | 185 / 250 | 50 | 3300*2050*2250 | 7500 | DN150 | |
| NXT-200V-4 | 200 / 270 | 56.6 | 3800*2400*2400 | 8000 | DN150 | |
| NXT-220V-4 | 220 / 300 | 62.6 | 4400*2250*2400 | 8200 | DN150 | |
| NXT-250V-4 | 250 / 335 | 69 | 4400*2250*2400 | 8600 | DN200 | |
| NXT-280V-4 | 280 / 375 | 71 | 4400*2250*2400 | 9000 | DN200 |
Note:
Model number remarks: “F” as fixed speed, “V” as VSD. Due to the potentially different rotation speeds of motors, the air flow rates of fixed speed represent the minimum in the range (i.e 30kW 8 bar 5.67m³/min), while VSD can reach the maximum at full loading.
Standard voltage in 380V (+/-10%), 50Hz +/-2% and available for customized voltage 220/380/440/460V/60Hz.
In cases of elevated altitudes, extreme temperatures, excessive humidity, heavy dust exposure, or any other challenging operational environments, we can offer tailored product designs to meet your specific needs. Customization is available to align with your unique requirements.
High-efficiency Centrifugal Fan (Customized)
The centrifugal fan boasts several advantages, including a large cooling air volume with stable and uniform air pressure. It also has a large heat dissipation area, resulting in a noticeable cooling effect. Additionally, it has overcome the challenge of poor cooling performance in high-power air compressors with wind cooling, and has significantly reduced noise levels by 5-4dB(A).

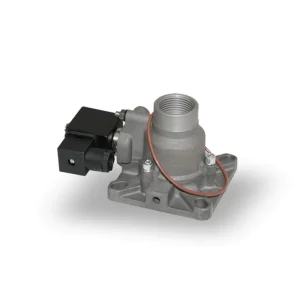

Energy saving air intake control system
The new specialized design of the integrated air valve includes a wide range of air adjustment, minimal pressure loss, stable operation, and a long lifespan. This compressor is designed to meet the needs of professionals and provide efficient and reliable performance.
cooling system
Equipped with a high-efficiency fin-type large heat exchange area cooler, the compressor boasts a surplus of 30% in heat exchange capacity, resulting in excellent cooling performance. It can operate normally even in an environment with a temperature as high as 45℃.
Increase customized oil separation system
The compressor is equipped with a customized oil separation system to ensure that the air contains less than 3ppm of oil. Additionally, the internal pressure of the compressor is kept low.

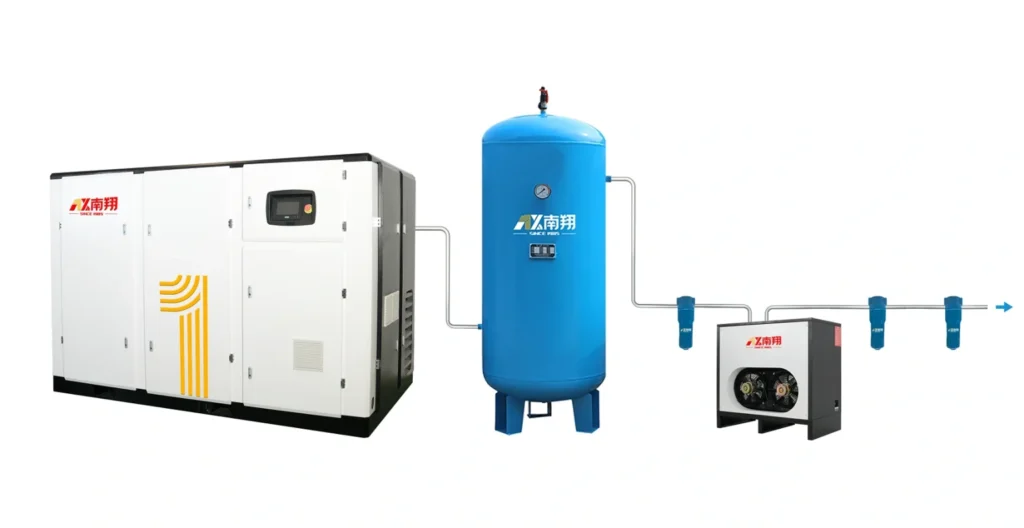

Installation Diagram for Low Pressure Air Compressor
Search
All Product
Contact Us
Looking for the Best Compressed Air Solution for your industry?
● Share your requirements for expert evaluation (multilingual support).
● Develop customized solution, considering options such as IP level, air end and parts, screen language, remote control, appearance, voltage and temperature adaptation, etc.
● Start production after order confirmation (standard production time: 20-25 days).
● Conduct rigorous quality testing before shipping.
● Lifelong technical support, original maintenance parts support, and up to 10-year warranty on the air end.
Frequently Asked Questions
Which industries are suitable for low pressure air compressor?
The low pressure screw air compressor is primarily used in industries that require low air pressure, such as cotton spinning, glass production, cement mixing, and wastewater treatment.
How to choose the right low pressure air compressor?
When choosing a low pressure air compressor, consider the Air Delivery ( or CFM ,cubic feet per minute)rating, the horsepower of the motor, the tank size, and the type of pump (oil-lubricated or oil-free). It’s also important to consider the intended use and the environment in which the compressor will be operating.
