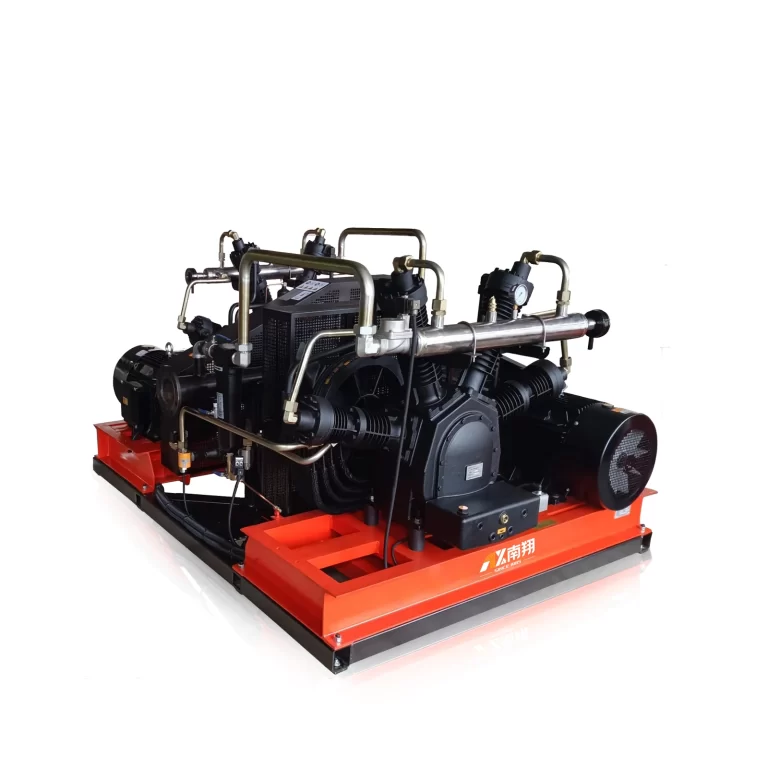

High Pressure Air Compressor Booster
High Pressure Air Compressor Booster
- Working Pressure:.2.5-10.0 MPa
- Free Air Delivery:1.0-24 m³/min
- Working Power:11-110 kW，15HP-148HP
Features of the High Pressure Air Compressor Booster
● Mainly high quality and long life,stable operation and efficient.
● Using new technology, efficiency is higher, reliability is higher, lifespan is Longer,Noise is lower, Emission temperature is lower and better acoustics. It can be used in power generation, water treatment and military applications
● Our machine is the best choice for you, it’s suitable for all types of paper or cardboard. It has the high performance, it’s professional and durable and the price is reasonable.
| Model | Flow | Inlet Press | Disc Press | Power |
|---|---|---|---|---|
| NXZG-2.0/40 | 2.0m³/min | 1.0Mpa | 2.5-4.0Mpa | 11KW |
| NXZG-4.0/40 | 4.0m³/min | 1.0Mpa | 2.5-4.0Mpa | 15KW |
| NXZG-6.0/40 | 6.0m³/min | 1.0Mpa | 2.5-4.0Mpa | 22KW |
| NXZG-8.0/40 | 8.0m³/min | 1.0Mpa | 2.5-4.0Mpa | 30KW |
| NXZG-24.0/40 | 10.0-24.0m³/min | 1.0Mpa | 2.5-4.0Mpa | 37-88KW |
Note:
Model number remarks: “F” as fixed speed, “V” as VSD. Due to the potentially different rotation speeds of motors, the air flow rates of fixed speed represent the minimum in the range (i.e 30kW 8 bar 5.67m³/min), while VSD can reach the maximum at full loading.
Standard voltage in 380V (+/-10%), 50Hz +/-2% and available for customized voltage 220/380/440/460V/60Hz.
In cases of elevated altitudes, extreme temperatures, excessive humidity, heavy dust exposure, or any other challenging operational environments, we can offer tailored product designs to meet your specific needs. Customization is available to align with your unique requirements.
Core Component Highlights of the High Pressure Air Compressor Booster
Features of the Air End
The air end of a compressor is composed of several components and features that improve its efficiency. It has a 50% reduction in fuel consumption, a 15% reduction in noise, a 5% increase in exhaust volume and a 10% reduction in energy consumption. Moreover, it increases the life span of the machine by 500%.
Integrated Box Structure
The Integrated Box Structure effectively increases the strength of the body, concentricity of the crankshaft, verticality of the crankshaft and air rod, and improves the stability and durability of the device.
Intelligent Double-VSD Inverter System (MD-500)
Pistons rings are cast as a single unit, plated to extend their life by up to four to five times, when made from high-pressure cast iron.
Roller Type Bearings
Roller type bearings are typically 2-5 times heavier than ball bearings. However, they offer a longer lifespan and lower noise output when compared to traditional ball bearing systems.
Double shaft
Double shaft seals are designed to improve the durability of seals, as well as eliminate any leakage problems that may occur with a single seal.
Full Bearing Connecting Rod
A full bearing connecting rod eliminates the need for a bearing and increases reliability and reduces failure rate by two to six times.
Search
All Product
Contact Us
Looking for the Best Compressed Air Solution for your industry?
● Share your requirements for expert evaluation (multilingual support).
● Develop customized solution, considering options such as IP level, air end and parts, screen language, remote control, appearance, voltage and temperature adaptation, etc.
● Start production after order confirmation (standard production time: 20-25 days).
● Conduct rigorous quality testing before shipping.
● Lifelong technical support, original maintenance parts support, and up to 10-year warranty on the air end.
Frequently Asked Questions
What is the warranty for the air valve of the air compressor?
The air valve adopts a patented combined air valve with a warranty of 2 years. It is highly efficient and has a long life.
Is there any safety mechanism in place in case of overpressure?
Yes, the unit is equipped with a shock-resistant pressure gauge and safety valve device between the unit stages. It can automatically discharge in case of overpressure to ensure safety.
Is there any protection system in case of oil shortage?
Yes, the oil level of the main engine is equipped with a low oil level switch protection system. This system detects the oil level in time and shuts down immediately for protection in case of oil shortage.
