In the world of industrial ventilation and HVAC systems, two commonly used types of fans are the axial fan and the centrifugal fan. While both serve the purpose of moving air, they differ significantly in their design, performance, and applications.
Blade Orientation
Axial fans have blades that rotate around an axis parallel to the airflow. These blades operate in a manner similar to an airplane propeller, pushing air in a straight line.

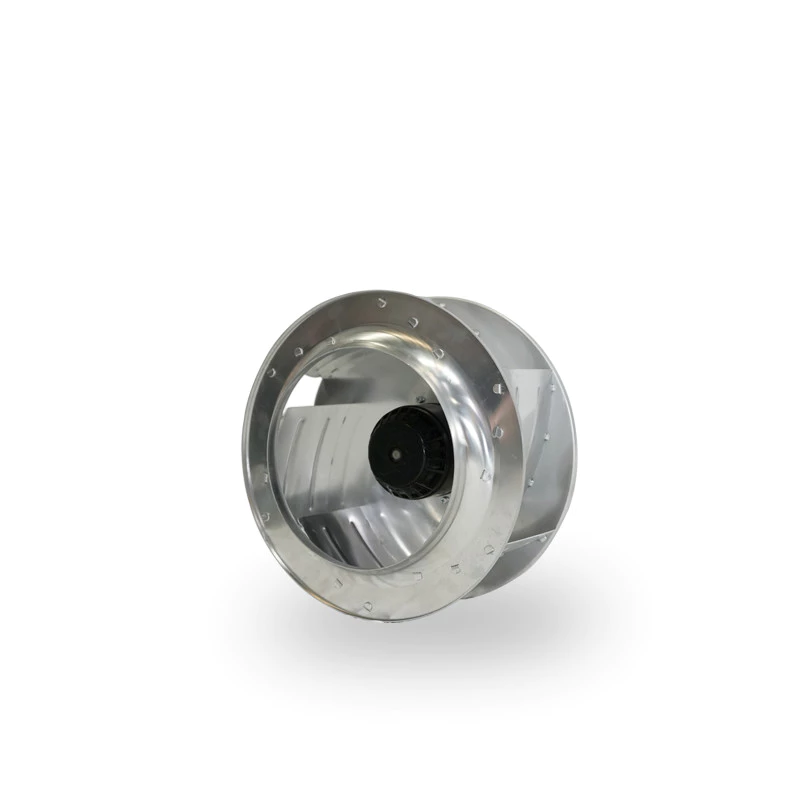

Centrifugal fans, on the other hand, have blades that rotate around an axis perpendicular to the airflow. The blades accelerate the air radially outward before it exits the fan housing.
Airflow Direction
Axial fans generate airflow in a straight line, which is suitable for applications where the air needs to move in the same direction as the fan’s axis, such as cooling electronic components.
Centrifugal fans create airflow that is directed at a right angle to the fan’s intake. This design is more versatile and can be used for both supply and exhaust air applications.
Pressure Generation
Axial fans are excellent at moving large volumes of air at relatively low pressures. They are efficient in applications where the resistance to airflow is minimal.
Centrifugal fans are better suited for applications requiring higher pressure or resistance to airflow. They can handle systems with ductwork and filters, making them ideal for HVAC systems.
Efficiency
Axial fans are generally more efficient in terms of airflow volume for a given amount of energy input. However, their efficiency drops as the static pressure increases.
Centrifugal fans maintain their efficiency over a wider range of static pressures, making them better for systems with varying resistance.
Noise Levels
Axial fans tend to produce less noise compared to centrifugal fans, making them suitable for applications where noise is a concern.
Centrifugal fans can be noisier due to the design of the fan blades and the higher air pressure they generate.
Applications
Axial fans are commonly used in applications like ventilation, cooling of electronic equipment, and air circulation in large spaces like warehouses.
Centrifugal fans are preferred for HVAC systems in commercial buildings, industrial processes with ducted systems, and applications where air needs to be moved against resistance.
In conclusion, the choice between an axial fan and a centrifugal fan depends on the specific requirements of your application. Axial fans are efficient for low-pressure, high-volume airflow, while centrifugal fans excel in applications with higher pressure and system resistance. Understanding the differences between these two types of fans is essential for selecting the right one to meet your needs.
