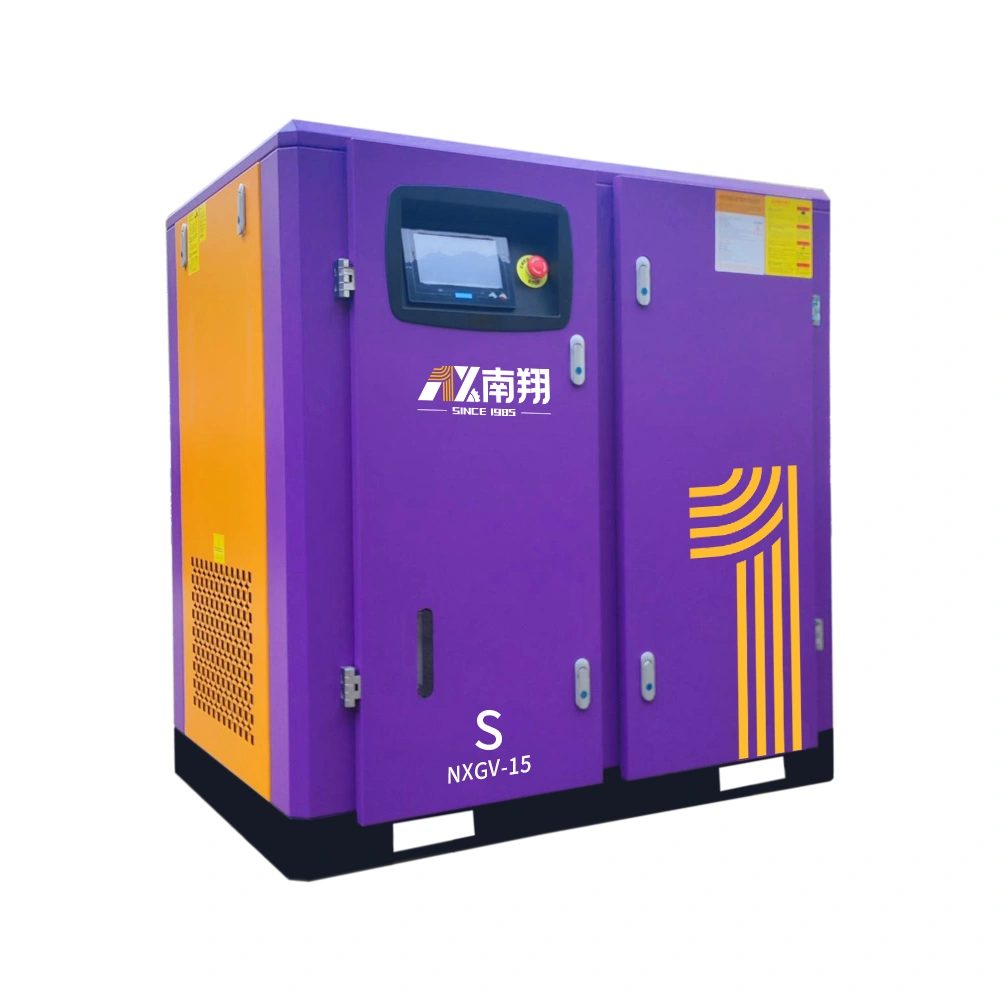

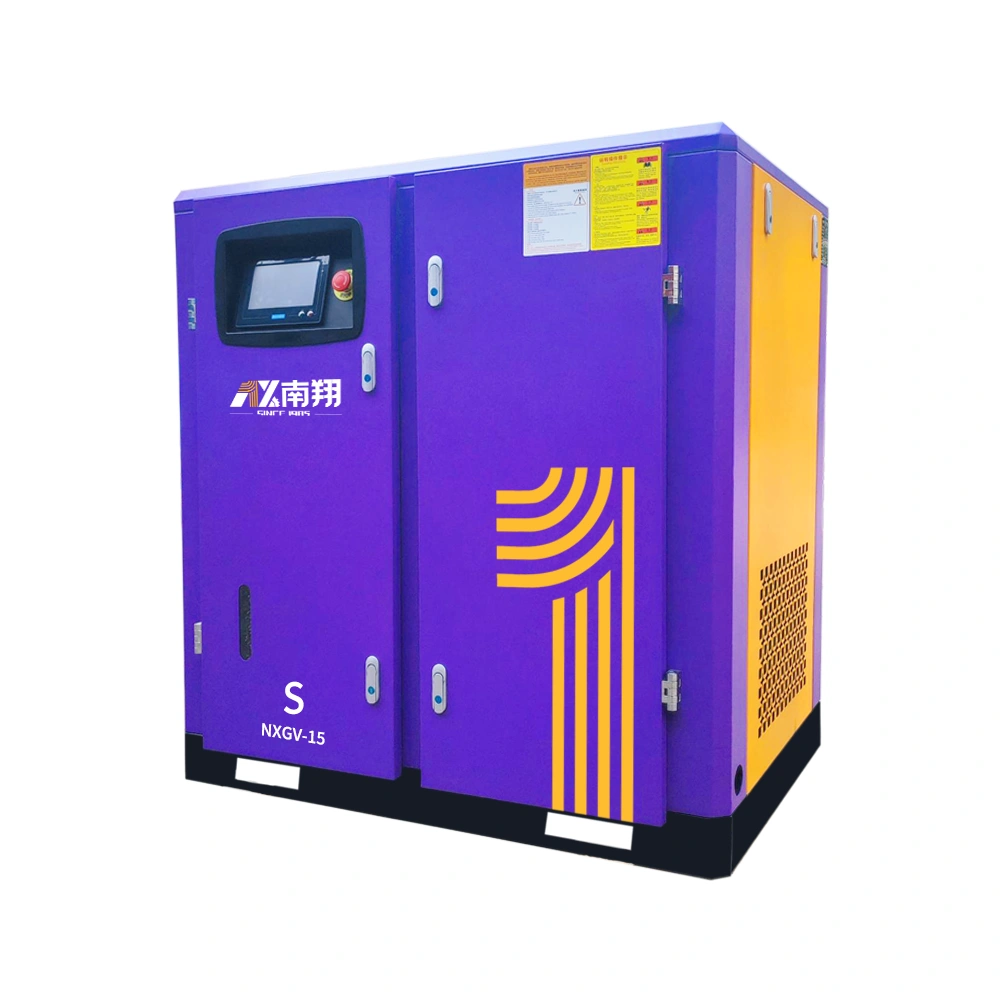

G Series Rotary Screw Compressors
G Series Rotary Screw Compressors
- Related Pressure: 7-13 Bar, 101.5 -188.5 psi
- Air Flow@ Outlet: 0.8-67.5 m³/min, 28-2408.2 cfm
- Power: 7.5-355 kW, 10-475 hp
Features of the G Series Rotary Screw Compressors
- GHH-RAND Air end, imported technology with higher precision;
- Premium IP54 IE3 asynchronous motors (fixed speed as “F” in model numbers) & Super Premium IP55 IE4 motors (VSD as “V” in model numbers); Standard voltage in 380V (+/-10%), 50Hz +/-2% and available for customized voltage 220/380/440/460V/60Hz.
- Divided-type inverter MD-500 from INOVANCE；
- Double VSD system: one for the motor, the other for the centrifugal fan motor;
- 8000 hours synthetic lubricating oil；

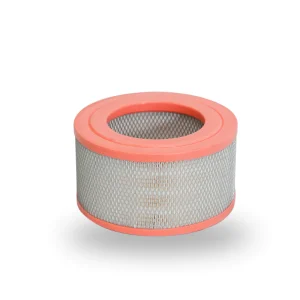

- 4000 hours spare parts (air filter, oil filter, oil & air separator) from international brands such as MANN, Donaldson, and APUREDA；
- IOT inside the PLC system；
- Schneider contactor；
- SKF bearings;
- Produce more free air delivery and have a longer service lifetime；
- Thermostat valve and differential pressure sensor are equipped；
- Customized motor S.F. 1.3 to help achieve higher air flow volume；
- Warranty: 1 year for the whole compressor, 5 years for the air ends.
Core Component Highlights of the G Series Rotary Screw Compressors

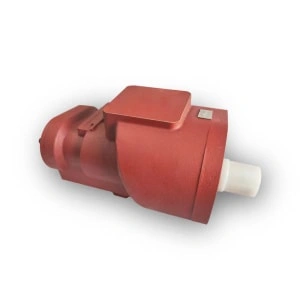

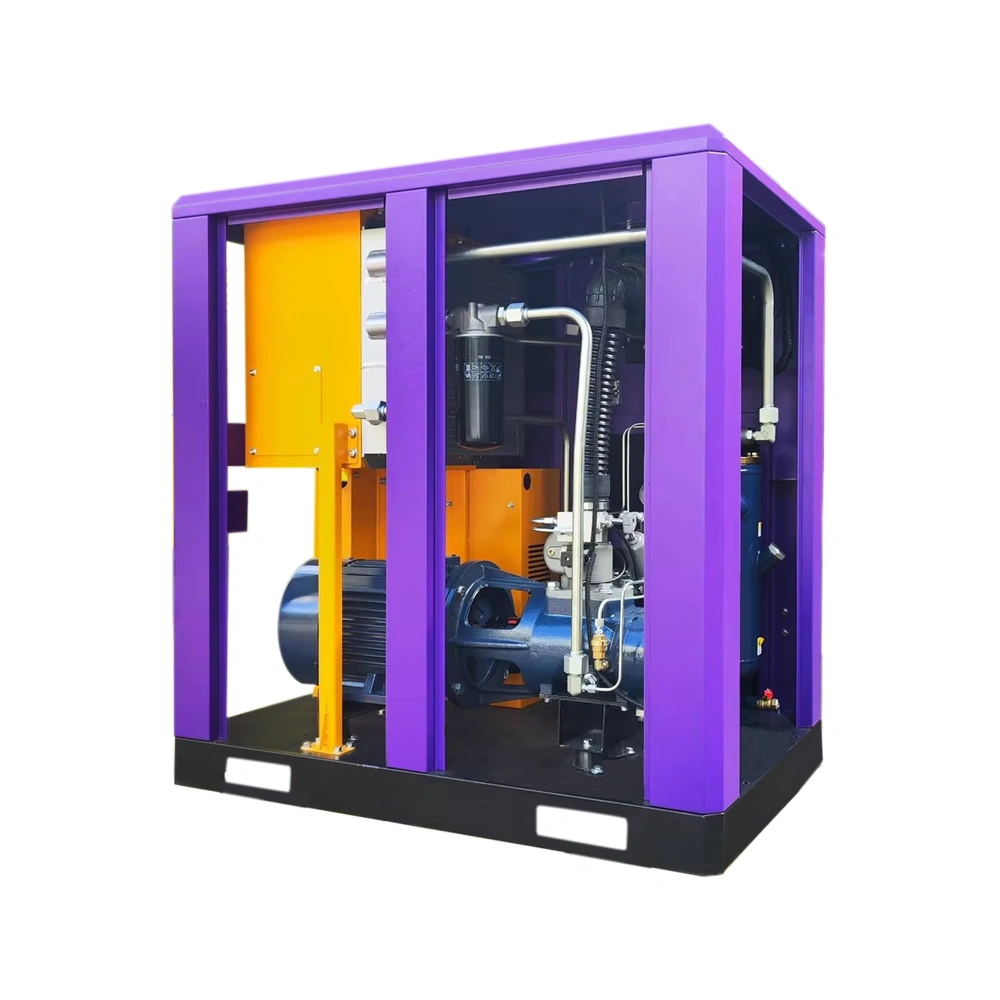

GHH-RAND Air End
The air end is manufactured on the latest CNC grinding machines and inspected using accurate 3D monitoring technology. A “fail-safe” shaft seal system eliminates oil leakage from the housing. Using the 3 O-rings unique design we minimize the down time of the compressor by indicating the need of replacement before breakdown.
What makes this air-end unique?
GHH-RAND achieves improved profile gaps and high precision dimensional and surface accuracy on all diameters through the implementation of a reverse-turning process using new tooling technology and a 5-axis machining of the housing.
With its semi-integrated design and major components such as inlet check valve, oil filter or thermostatic valve mounted directly onto the casing of the air end, air paths are shortened and optimized for minimum pressure drop, while air and oil connections are reduced to a minimum, drastically reducing opportunities for leaks, while making service and maintenance a lot easier.
High-efficiency IE3/IE4 Energy-saving (permanent magnet) Customized Motor
● Utilize the high-efficiency fixed speed IP54 motor and more energy-saving permanent magnet IP55 motor. Class F Insulation level as a standard, S.F. ≥1.2 to make sure the larger-size motor can stand high-volume (unstable) current and high temperature;
● Its bearings are heavy-duty SKF bearings from Sweden, which is approx. 70000 hours service lifetime @9 bar and its efficiency is 5%-10% higher than similar products;
● Run smoothly at higher rotation speed with low noise and vibration because of its high-balance precision.

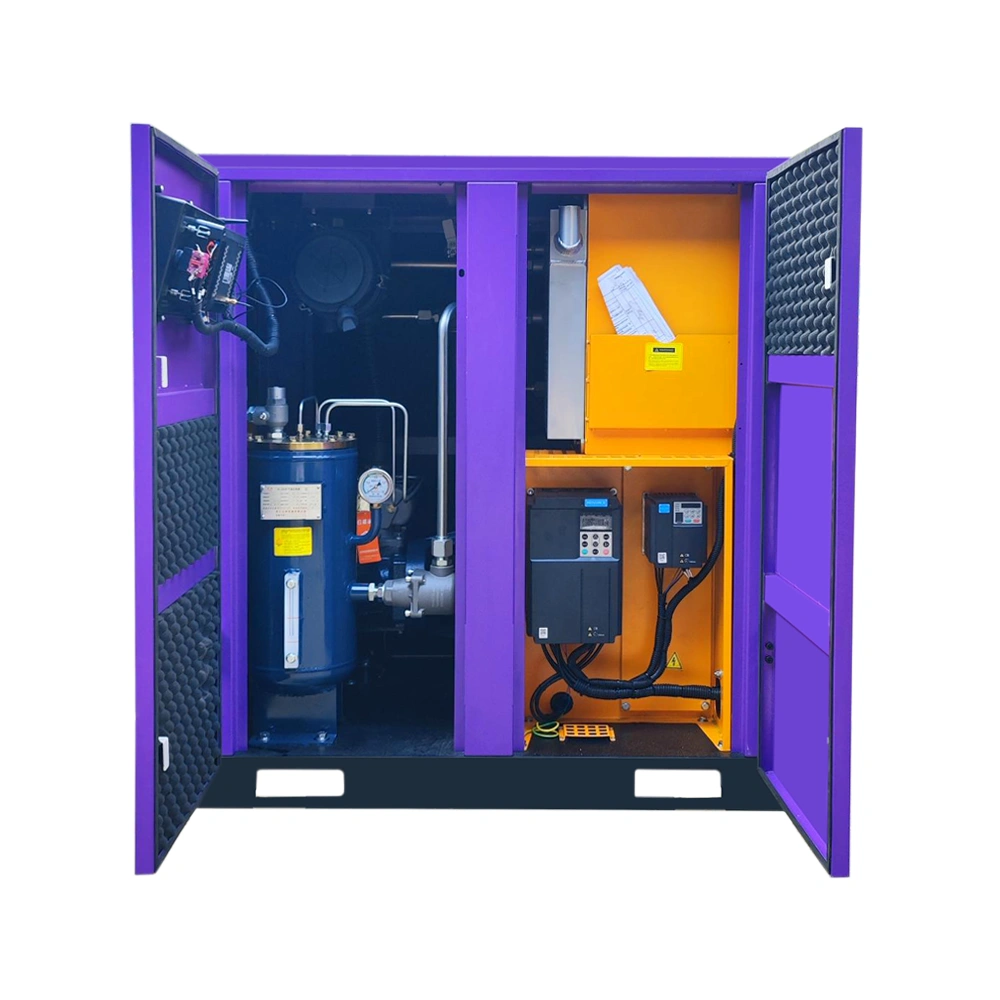

Intelligent Double-VSD Inverter System (MD-500)
The system of permanent variable speed rotary screw air compressor features the use of high-performance vector frequency IP23 inverters from INOVANCE, which is the top brand in China. (IP54 and IP65 available for customization)
It also boasts a user-friendly interface that allows for easy switching between Chinese and English languages, or even a third language such as Russian and Spanish. Additionally, an optional Internet of Things cloud intelligence system can be applied for the remote control.

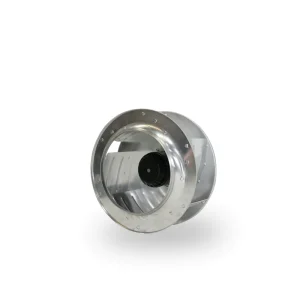

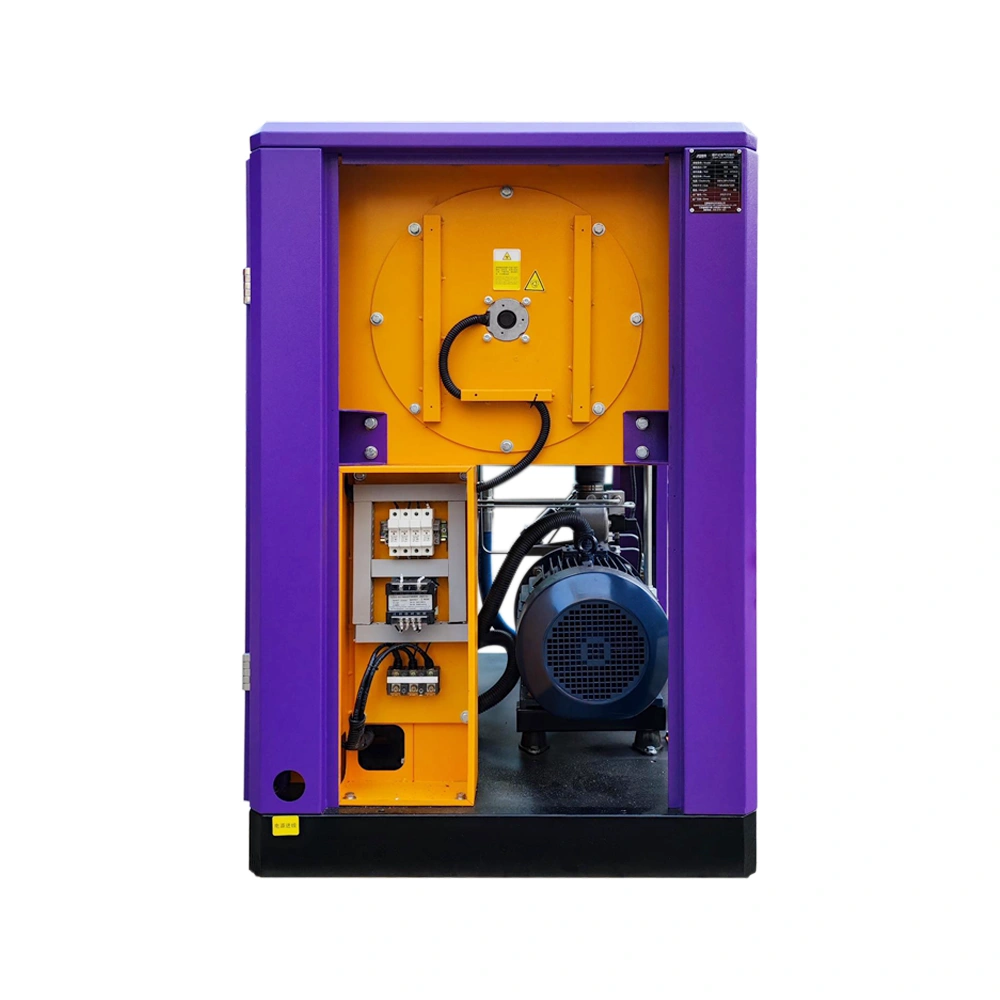

VSD Centrifugal Fan
The VSD centrifugal fan boasts the space-saving design, 20% more efficient cooling, and quiet operation. Its smooth performance and easy maintenance make it a reliable choice. Additionally, it features variable frequency control for constant temperature control and less electricity consumption.
Intelligent Colored Touch Screen Control Panel
● Brand Options: PLT and INOVANCE, available model numbers: For fixed speed, MAM-860/880/890; for VSD, MAM-6070/6080/6090, IT7000/7070;
● Provides a user-friendly interface that displays real-time operating data, including max. 100-time status updates and fault alerts without time limitation;
● Offers online monitoring/sensoring of pressure, power, air flow rate and temperature fluctuations;
● The system has the capability to monitor faults in real-time and record alarm logs, as well as schedule automatic power on/off functions.

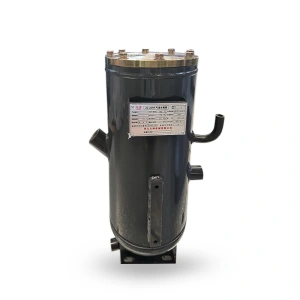

High-efficiency Oil & Air Separator
The oil & air separator boasts a lifespan of at least 8000 hours and is made of microfiber glass material. Its folding process ensures optimal performance, with air containing less than 3 parts per million of oil and oil mist particles measuring 0.1 micrometers or less.
Shell #46 Synthetic Lubricating Oil
The synthetic oil is an anologue of the Ingersoll Rand UltraCoolant that boasts a lifespan of up to 8000 hours. It helps with our air ends to work with a longer maintenance intervals.
MANN Oil Filter
This filter boasts a lifespan of up to 4000 hours, with a filtering precision of 10-15 microns or less. It also has a filtering efficiency of 99.5% or higher.
| Model | Power (kW/HP) | Rated pressure (bar) | Free Air Delivery (m3/min) | Dimensions (mm) | Weight (kg) | Outlet Pipe Diameter |
|---|---|---|---|---|---|---|
| NXG-7.5V NXG-7.5F | 7.5/10 | 7 | 1.1~1.2 | 910*650*950 | 165 | DN15 |
| 8 | 1.03~1.1 | |||||
| 10 | 0.91~1.0 | |||||
| 13 | 0.80~0.86 | |||||
| NXG-11V NXG-11F | 11/15 | 7 | 1.6~1.7 | 1180*800*1210 | 370 | DN20 |
| 8 | 1.4~1.6 | |||||
| 10 | 1.2~1.4 | |||||
| 13 | 1.1~1.3 | |||||
| NXG-15V NXG-15F | 15 / 20 | 7 | 2.3~2.5 | 1180*800*1210 | 382 | DN20 |
| 8 | 2.2~2.4 | |||||
| 10 | 1.9~2.1 | |||||
| 13 | 1.6~1.7 | |||||
| NXG-18.5V NXG-18.5F | 18.5 / 25 | 7 | 2.85-3.1 | 1300*910*1300 | 500 | DN25 |
| 8 | 2.8-3.0 | |||||
| 10 | 2.4~2.61 | |||||
| 13 | 2.0~2.3 | |||||
| NXG-22V NXG-22F | 22 / 30 | 7 | 3.37-3.66 | 1300*910*1300 | 520 | DN25 |
| 8 | 3.17-3.45 | |||||
| 10 | 2.86-3.11 | |||||
| 13 | 2.32~2.8 | |||||
| NXG-30V NXG-30F | 30 / 40 | 7 | 5.6~5.9 | 1450*960*1470 | 610 | DN40 |
| 8 | 5.2~5.46 | |||||
| 10 | 4.8~5.0 | |||||
| 13 | 3.7~4.0 | |||||
| NXG-37V NXG-37F | 37 / 50 | 7 | 6.5~6.8 | 1450*960*1470 | 720 | DN40 |
| 8 | 6.3~6.6 | |||||
| 10 | 5.8~6.2 | |||||
| 13 | 4.6~5.0 | |||||
| NXG-45V NXG-45F | 45 / 60 | 7 | 8.1~8.9 | 1450*960*1470 | 760 | DN40 |
| 8 | 8.0~8.5 | |||||
| 10 | 7.0~7.7 | |||||
| 13 | 5.6~5.9 | |||||
| NXG-55V NXG-55F | 55 / 75 | 7 | 10.3~11.2 | 2460* 1540* 1705 | 1480 | DN50 |
| 8 | 9.8~10.4 | |||||
| 10 | 9.0~9.3 | |||||
| 13 | 7.4~7.8 | |||||
| NXG-75V NXG-75F | 75 / 100 | 7 | 14.0~14.5 | 2460* 1540* 1705 | 1680 | DN50 |
| 8 | 13.2~13.9 | |||||
| 10 | 12.3~13.0 | |||||
| 13 | 9.8~10.7 | |||||
| NXG-90V NXG-90F | 90 / 120 | 7 | 16.75~17.95 | 2460*1540*1705 | 1880 | DN65 |
| 8 | 16.48~17.58 | |||||
| 10 | 12.04~13.24 | |||||
| 13 | 11.92~13.12 | |||||
| NXG-110V NXG-110F | 110 / 150 | 7 | 19.32~21.00 | 3015*1680*1805 | 2400 | DN65 |
| 8 | 18.62~20.24 | |||||
| 10 | 15.78~17.15 | |||||
| 13 | 13.63~14.82 | |||||
| NXG-132V NXG-132F | 132 / 175 | 7 | 22.68~24.65 | 3015*1680*1805 | 2700 | DN65 |
| 8 | 22.63~24.6 | |||||
| 10 | 19.82~21.54 | |||||
| 13 | 16.04~17.44 | |||||
| NXG-160V NXG-160F | 160 / 215 | 7 | 28.24~30.7 | 3015*1680*1805 | 2900 | DN80 |
| 8 | 27.52~29.91 | |||||
| 10 | 21.82~23.72 | |||||
| 13 | 18.89~20.53 | |||||
| NXG-185V NXG-185F | 185 / 250 | 7 | 34.3~37 | 3500*1980*2050 | 3600 | DN80 |
| 8 | 33.8~35.7 | |||||
| 10 | 28.6~32.4 | |||||
| 13 | 23.2~25.2 | |||||
| NXG-200V NXG-200F | 200 / 270 | 7 | 39.0~41.5 | 3500*1980*2050 | 3750 | DN80 |
| 8 | 37.7~40.0 | |||||
| 10 | 30.66~35.7 | |||||
| 13 | 26.0~28.5 | |||||
| NXG-220V NXG-220F | 220 / 300 | 7 | 42.85~45.6 | 3500*1980*2050 | 3900 | DN100 |
| 8 | 38.4~43.2 | |||||
| 10 | 35.2~38.8 | |||||
| 13 | 30.3~34.0 | |||||
| NXG-250V NXG-250F | 250 / 335 | 7 | 45.77~50.2 | 3865*2050*2300 | 4150 | DN100 |
| 8 | 44.25~48.1 | |||||
| 10 | 39.6~43.0 | |||||
| 13 | 32.5~35.1 | |||||
| NXG-315V NXG-315F | 315/420 | 7 | 56.43~63.0 | 4100*2200*2300 | 4800 | DN125 |
| 8 | 52.3~60.0 | |||||
| 10 | 50.78~57.0 | |||||
| 13 | 45.18~52.18 | |||||
| NXG-355V NXG-355F | 355/475 | 7 | 62.1~67.5 | 4100*2200*2300 | 5200 | DN125 |
| 8 | 59.8~65.0 | |||||
| 10 | 57.68~62.7 | |||||
| 13 | 45.18~52.18 |
Note:
Model number remarks: “F” as fixed speed, “V” as VSD. Due to the potentially different rotation speeds of motors, the air flow rates of fixed speed represent the minimum in the range (i.e 30kW 8 bar 5.67m³/min), while VSD can reach the maximum at full loading.
Standard voltage in 380V (+/-10%), 50Hz +/-2% and available for customized voltage 220/380/440/460V/60Hz.
In cases of elevated altitudes, extreme temperatures, excessive humidity, heavy dust exposure, or any other challenging operational environments, we can offer tailored product designs to meet your specific needs. Customization is available to align with your unique requirements.
Search
All Product
Contact Us
Installation Diagram(Regular)
Looking for the Best Compressed Air Solution for your industry?
● Share your requirements for expert evaluation (multilingual support).
● Develop customized solution, considering options such as IP level, air end and parts, screen language, remote control, appearance, voltage and temperature adaptation, etc.
● Start production after order confirmation (standard production time: 20-25 days).
● Conduct rigorous quality testing before shipping.
● Lifelong technical support, original maintenance parts support, and up to 10-year warranty on the air end.
Frequently Asked Questions
What is permanent variable speed rotary screw air compressor?
A permanent variable speed rotary screw air compressor utilizes a permanent magnet synchronous motor, which does not require reactive magnetizing current and can significantly improve power factor (up to 1, even capacitive), reducing stator current and resistance losses. Additionally, there is no rotor loss during stable operation, which can reduce fan (even eliminating it in small capacity motors) and corresponding windage losses, resulting in an efficiency improvement of 2-8 percentage points compared to a regular motor of the same specifications.
Why choose high end permanent variable speed rotary screw air compressor?
High-end permanent variable speed rotary screw air compressors offer a range of benefits, including energy efficiency, reduced maintenance costs, and improved air quality. Compared to the normal type, the high end permanent a longer lifespan and can handle heavy-duty industrial applications with ease. While they may have a higher upfront cost, the long-term savings and benefits make them a worthwhile investment for many businesses.
